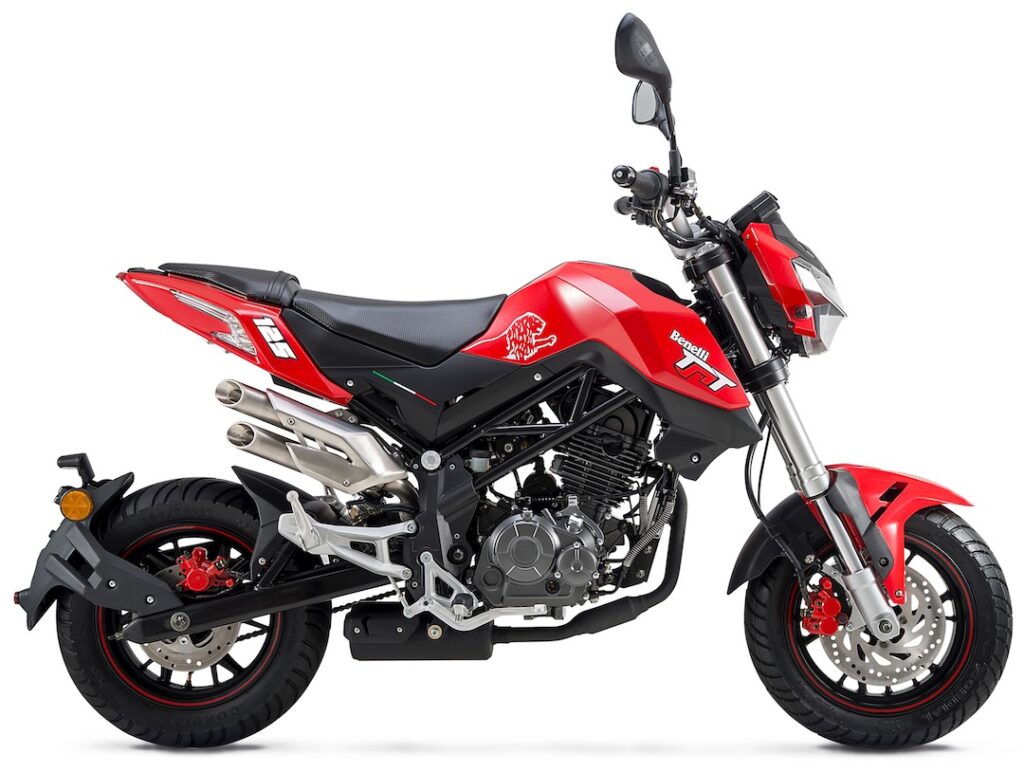

2018 Benelli TNT 135 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Benelli TNT 135.

Basic Specs

Year2018
MakeBenelli
ModelBenelli TNT 135
Cost

Engine

Displacement134.70 ccm (8.22 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke54.0 x 58.8 mm (2.1 x 2.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionCDI
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet clutch
Driveline

Performance

Horespower13.00 HP (9.5 kW)
Torque10.80 Nm (1.1 kgf-m or 8.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.20 litres (1.90 gallons)
Emissions

Chassis

Frame TypeTrestle in steel tubes
Rake
Trail
Front SuspensionUpside-down forks, 41mm
Front Travel120 mm (4.7 inches)
Rear SuspensionRear swing arm with lateral shock absorber with spring pre-load adjustment
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,080 mm (42.5 inches)
Total Length1,750 mm (68.9 inches)
Total Width780 mm (30.7 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase1,250 mm (49.2 inches)
Dry Weight121.0 kg (266.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR12
Rear Tire/Tyre130/70-ZR12
Front BrakesDouble disc. 2 pistons caliper
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter120 mm (4.7 inches)
WheelsAluminum alloy

Comments

It appears you're interested in specifications for the Benelli TNT 135. This Minibike, sport model is powered by a Single cylinder, four-stroke engine with 134.70 ccm (8.22 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection allowing this machine to produce its 13.00 HP (9.5 kW) horsepower and 10.80 Nm (1.1 kgf-m or 8.0 ft.lbs) torque. According to our records engine heat of the Benelli TNT 135 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR12 and the rear is 130/70-ZR12 . The entire package is supported by the frame, Trestle in steel tubes. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 2 pistons caliper front brakes and Single disc rear brakes. The Benelli TNT 135 was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
