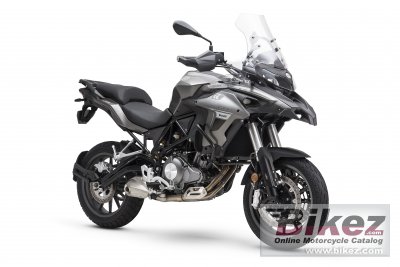

These are the known mechanical and performance specifications for your 2018 Benelli TRK 502.
Basic Specs

Engine
Displacement499.60 ccm (30.49 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke69.0 x 66.8 mm (2.7 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTLI
Exhaust
LubricationWet sump
CoolingLiquid
Performance
Horespower47.60 HP (34.7 kW)
Torque45.00 Nm (4.6 kgf-m or 33.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions
Chassis
Frame TypeTrestle in steel tubes
Rake
Trail
Front SuspensionAdjustable Upside-down forks
Front Travel135 mm (5.3 inches)
Rear SuspensionRear swing arm with central shock absorber spring preload adjustable
Rear Travel45 mm (1.8 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height825 mm (32.5 inches) If adjustable, highest setting.
Total Height1,465 mm (57.7 inches)
Total Length2,170 mm (85.4 inches)
Total Width912 mm (35.9 inches)
Ground Clearance
Wheelbase1,525 mm (60.0 inches)
Dry Weight213.0 kg (469.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. 4-piston, ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Single piston calliper, ABS
Rear Brake Diameter260 mm (10.2 inches)
WheelsAluminum alloy (optional aluminium rim spoked )
