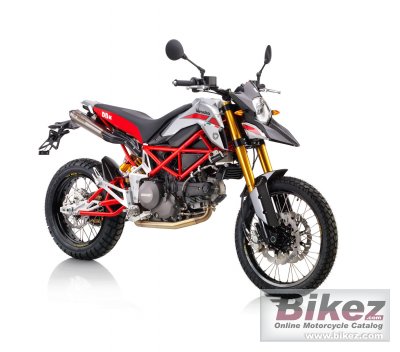

2018 Bimota DBX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Bimota DBX.

Basic Specs

Year2018
MakeBimota
ModelBimota DBX
Cost

Engine

Displacement1078.00 ccm (65.78 cubic inches)
TypeDucati 1100DS engine. L-twin.
DetailsV2, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Electronic fuel injection Bimota by Athena
Ignition
Exhaust
LubricationWet sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multidisc with slippery clutch
Driveline

Performance

Horespower98.00 HP (71.5 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed220.0 km/h (136.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions

Chassis

Frame TypeNiCrmo4 Steel trellis with aluminium plates
Rake27.0°
Trail
Front SuspensionÖhlins Ø 48 mm upside down fork, TTX cartdridge system, with adjustable rebound and compression damping
Front Travel210 mm (8.3 inches)
Rear SuspensionMonoshock Öhlins for Bimota adjustable in preload, high and low speed of compression damping, single speed on rebound damping
Rear Travel200 mm (7.9 inches)
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,200 mm (47.2 inches)
Total Length2,220 mm (87.4 inches)
Total Width850 mm (33.5 inches)
Ground Clearance
Wheelbase1,560 mm (61.4 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre180/70-18
Front BrakesDouble disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter220 mm (8.7 inches)
WheelsWire spoked, forged aluminium rims

Comments

It appears you're interested in specifications for the Bimota DBX. This Super motard model is powered by a Ducati 1100DS engine. L-twin. V2, four-stroke engine with 1078.00 ccm (65.78 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection. Electronic fuel injection Bimota by Athena allowing this machine to produce its 98.00 HP (71.5 kW) horsepower and 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) torque. According to our records engine heat of the Bimota DBX is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 180/70-18 . The entire package is supported by the frame, NiCrmo4 Steel trellis with aluminium plates. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers front brakes and Single disc. 2-piston rear brakes. The Bimota DBX was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Italian brand.
