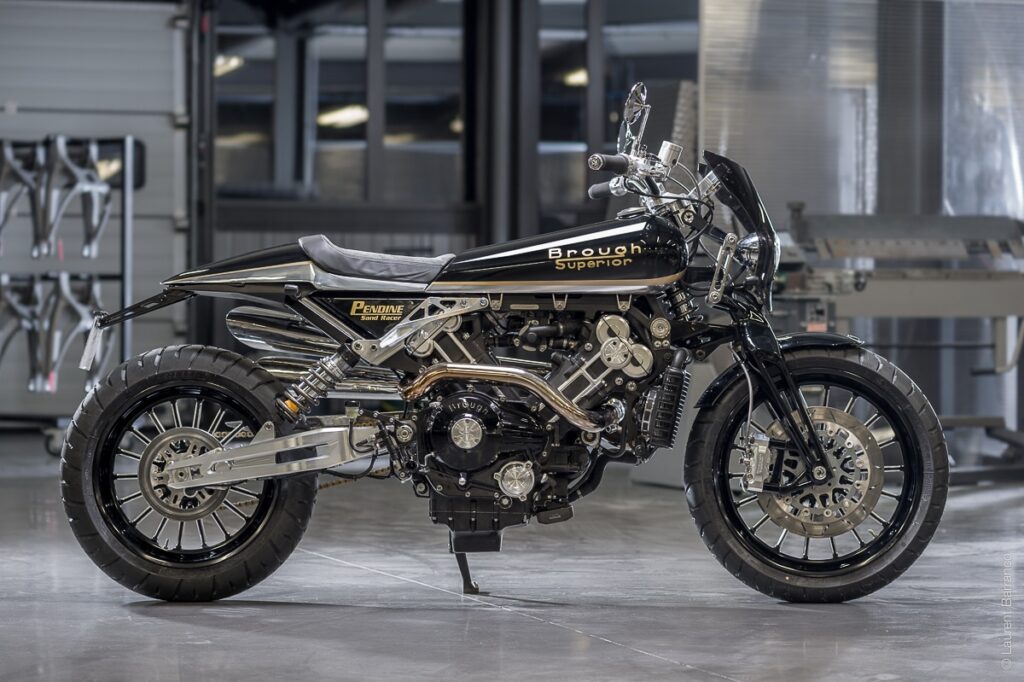

2018 Brough Superior Pendine Sand Racer Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Brough Superior Pendine Sand Racer.

Basic Specs

Year2018
MakeBrough Superior
ModelBrough Superior Pendine Sand Racer
TypeSport
Cost

Engine

Displacement997.00 ccm (60.84 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke94.0 x 71.8 mm (3.7 x 2.8 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMultiplate oil-bath Adler clutch with hydraulic operation
Driveline

Performance

Horespower100.00 HP (73.0 kW)
Torque130.00 Nm (13.3 kgf-m or 95.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeMachined titanium frame with fabricated titanium subframe
Rake23.3°
Trail94 mm (3.7 inches)
Front SuspensionFior-type cast aluminium wishbone fork with twin articulated titanium triangular links, and monoshock adjustable for preload and rebound damping with 120mm travel
Front Travel
Rear SuspensionCast aluminium swingarm pivoting in engine crankcases, with monoshock adjustable for preload and rebound damping and progressive rate link with 130mm travel
Rear Travel
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,108 mm (43.6 inches)
Total Length2,180 mm (85.8 inches)
Total Width730 mm (28.7 inches)
Ground Clearance
Wheelbase1,540 mm (60.6 inches)
Dry Weight196.0 kg (432.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-R19
Rear Tire/Tyre170/60-R17
Front BrakesDouble disc. Four-piston calipers.
Front Brake Diameter230 mm (9.1 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter230 mm (9.1 inches)
WheelsAaluminum

Comments

It appears you're interested in specifications for the Brough Superior Pendine Sand Racer. This Sport model is powered by a V2, four-stroke engine with 997.00 ccm (60.84 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 100.00 HP (73.0 kW) horsepower and 130.00 Nm (13.3 kgf-m or 95.9 ft.lbs) torque. According to our records engine heat of the Brough Superior Pendine Sand Racer is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-R19 and the rear is 170/60-R17 . The entire package is supported by the frame, Machined titanium frame with fabricated titanium subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Four-piston calipers. front brakes and Single disc. Two-piston calipers. rear brakes. The Brough Superior Pendine Sand Racer was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Each motorcycle is made to order. There is a choice of three finishes and a number of options including optional wheels, handle bars, footrests and seats.
