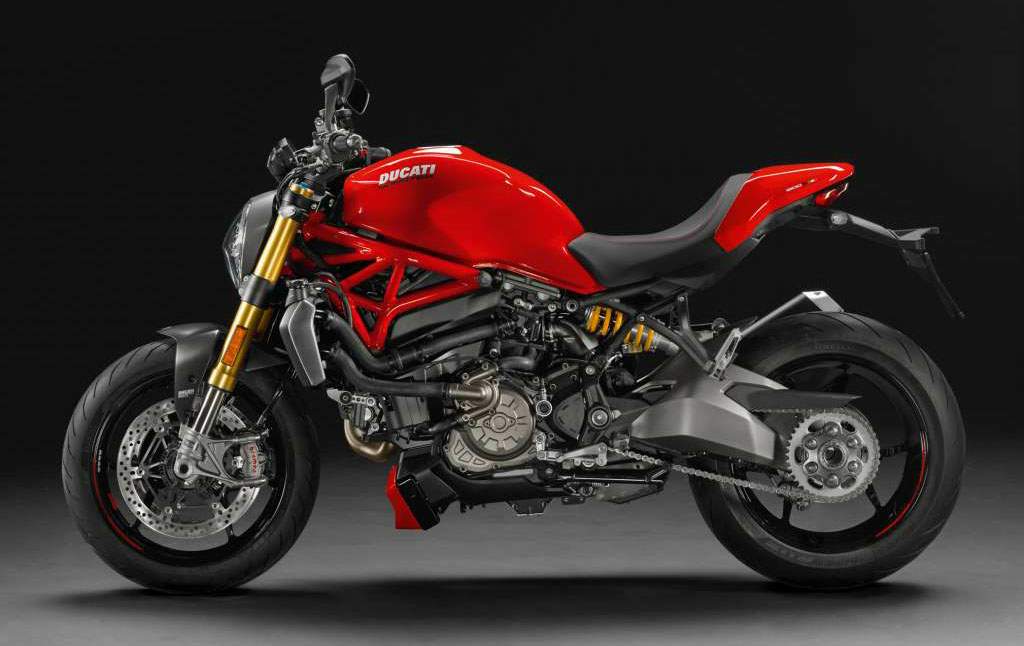

These are the known mechanical and performance specifications for your 2018 Ducati Monster 1200 S.
Basic Specs
Engine
Displacement1198.40 ccm (73.13 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. 53mm throttle bodies with full Ride by Wire
Ignition
ExhaustLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Driveline
Performance
Horespower147.00 HP (107.3 kW)
Torque124.00 Nm (12.6 kgf-m or 91.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.20 litres/100 km (19.2 km/l or 45.23 mpg)
Fuel Capacity16.50 litres (4.36 gallons)
Emissions120.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular steel Trellis frame attached to the cylinders head
Rake23.3°
Trail93 mm (3.7 inches)
Front SuspensionOhlins fully adjustable usd fork
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive linkage with Ohlins monoshock, preload and rebound adjustable, Aluminium single-sided swingarm
Rear Travel149 mm (5.9 inches)
SeatDual seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height810 mm (31.9 inches) If adjustable, highest setting.
Total Height1,040 mm (40.9 inches)
Total Length2,200 mm (86.6 inches)
Total Width830 mm (32.7 inches)
Ground Clearance
Wheelbase1,511 mm (59.5 inches)
Dry Weight185.0 kg (407.9 pounds)
Wet Weight211.0 kg (465.2 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
WheelsY-shaped 3-spoke in light alloy
