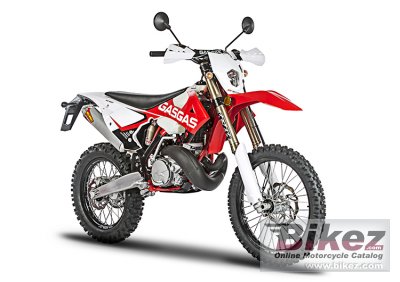

2018 GAS GAS EC 250 E4 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 GAS GAS EC 250 E4.

Basic Specs

Year2018
MakeGAS GAS
ModelGAS GAS EC 250 E4
Cost

Engine

Displacement249.30 ccm (15.21 cubic inches)
TypeDirect reed valve VForce 4
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionElectronic
ExhaustFMF PowerCore 2.1
Lubrication2-stroke-oil/fuel mixed 1:50
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMultidisc in oil bath. Magura clutch pump.
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame TypeCenter frame in chrome-moly-steelframe
Rake
Trail
Front SuspensionKYB ø48 mm, AOS system, closed cartridge
Front Travel300 mm (11.8 inches)
Rear SuspensionAluminium and Linkage system swingarm. KYB mono shock.
Rear Travel131 mm (5.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,260 mm (49.6 inches)
Total Length2,285 mm (90.0 inches)
Total Width825 mm (32.5 inches)
Ground Clearance
Wheelbase1,480 mm (58.3 inches)
Dry Weight105.0 kg (231.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc. NG disc, Nissin caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. NG disc, Nissin caliper
Rear Brake Diameter220 mm (8.7 inches)
WheelsExcel Aluminium spoke rim

Comments

It appears you're interested in specifications for the GAS GAS EC 250 E4. This Enduro / offroad model is powered by a Direct reed valve VForce 4 Single cylinder, two-stroke engine with 249.30 ccm (15.21 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the GAS GAS EC 250 E4 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, Center frame in chrome-moly-steelframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. NG disc, Nissin caliper front brakes and Single disc. NG disc, Nissin caliper rear brakes. The GAS GAS EC 250 E4 was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Spanish made bike.
