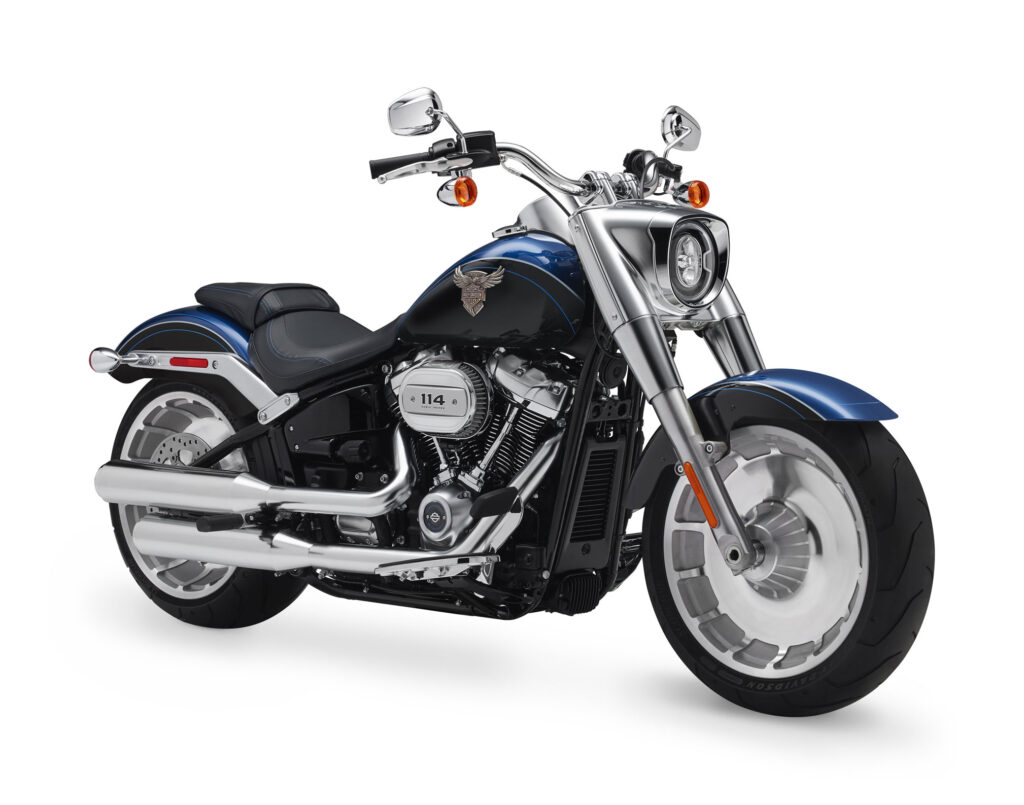

These are the known mechanical and performance specifications for your 2018 Harley-Davidson 115th Anniversary Fat Boy 114 (ANV).
Basic Specs
Year2018
MakeHarley-Davidson
ModelHarley-Davidson 115th Anniversary Fat Boy 114 (ANV)
TypeCustom / cruiser
CostUS$ 21199. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1753.52 ccm (107.00 cubic inches)
TypeMilwaukee-Eight® 107, optionally 114 Big Twin
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-2 shorty dual; catalyst in muffler
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower86.00 HP (62.8 kW)
Torque145.00 Nm (14.8 kgf-m or 107.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.0°
Trail104 mm (4.1 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height675 mm (26.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,370 mm (93.3 inches)
Total Width
Ground Clearance115 mm (4.5 inches)
Wheelbase1,665 mm (65.6 inches)
Dry Weight304.0 kg (670.2 pounds)
Wet Weight317.0 kg (698.9 pounds)
Wheels & Brakes
Front Tire/Tyre160/60-R18
Rear Tire/Tyre240/40-R18
Front BrakesDouble disc. ABS. 4-piston.
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston.
Rear Brake Diameter
WheelsMachined, Lakester cast aluminum
