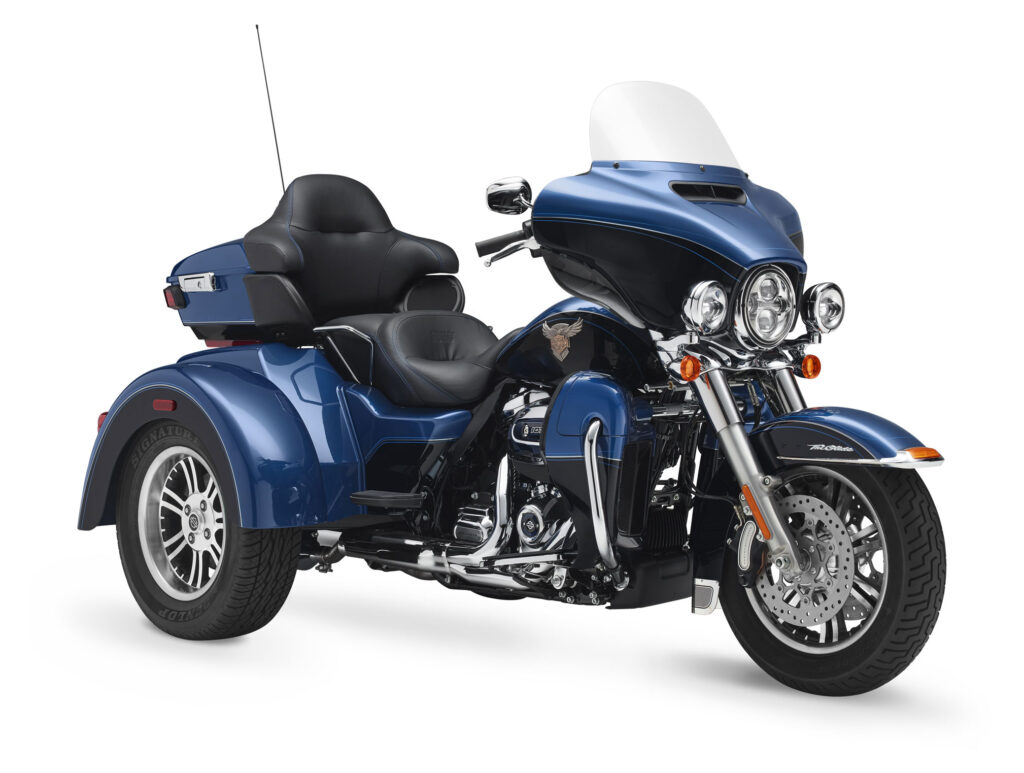

These are the known mechanical and performance specifications for your 2018 Harley-Davidson 115th Anniversary Tri Glide Ultra.
Basic Specs
Year2018
MakeHarley-Davidson
ModelHarley-Davidson 115th Anniversary Tri Glide Ultra
TypeTouring
CostUS$ 36299. Euro 32275. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1745.00 ccm (106.48 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower87.00 HP (63.5 kW)
Torque152.00 Nm (15.5 kgf-m or 112.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.60 litres/100 km (15.2 km/l or 35.64 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions153.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail100 mm (3.9 inches)
Front SuspensionTelescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,675 mm (105.3 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,670 mm (65.7 inches)
Dry Weight546.0 kg (1,203.7 pounds)
Wet Weight564.0 kg (1,243.4 pounds)
Wheels & Brakes
Front Tire/TyreMT90-B16
Rear Tire/Tyre205/65-R15
Front BrakesDouble disc. 6 piston.
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsBlack, 7-spoke Cast Aluminum. Two rear wheels.
Comments
Trike. Windshield. Cruise control. Alarm. Foot actuated dual parking brake.
