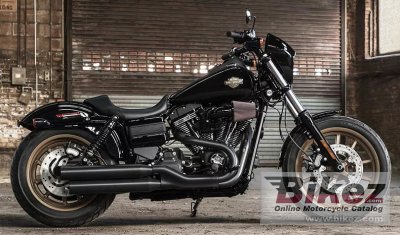

2018 Harley-Davidson Dyna Low Rider S Dark Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Harley-Davidson Dyna Low Rider S Dark Custom.

Basic Specs

Year2018
MakeHarley-Davidson
ModelHarley-Davidson Dyna Low Rider S Dark Custom
CostUS$ 16049. Euro 19995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1801.00 ccm (109.90 cubic inches)
TypeScreamin Eagle® Twin Cam 110
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.1 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers
LubricationDry sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 57/38 ratio

Performance

Horespower97.00 HP (70.8 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.10 litres/100 km (19.6 km/l or 46.12 mpg)
Fuel Capacity18.90 litres (4.99 gallons)
Emissions118.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.5°
Trail128 mm (5.0 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height685 mm (27.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,390 mm (94.1 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight293.0 kg (646.0 pounds)
Wet Weight305.0 kg (672.4 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-B19
Rear Tire/Tyre160/70-B17
Front BrakesSingle disc. ABS, 4-piston fixed.
Front Brake Diameter
Rear BrakesSingle disc. ABS, 2-piston torque-free floating
Rear Brake Diameter
WheelsGloss Black Cast Aluminum Wheel w/ Laser Etched Graphics

Comments

It appears you're interested in specifications for the Harley-Davidson Dyna Low Rider S Dark Custom. This Custom / cruiser model is powered by a Screamin Eagle® Twin Cam 110 V2, four-stroke engine with 1801.00 ccm (109.90 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. ESPFI allowing this machine to produce its 97.00 HP (70.8 kW) horsepower and 156.00 Nm (15.9 kgf-m or 115.1 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Dyna Low Rider S Dark Custom is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/90-B19 and the rear is 160/70-B17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS, 4-piston fixed. front brakes and Single disc. ABS, 2-piston torque-free floating rear brakes. The Harley-Davidson Dyna Low Rider S Dark Custom was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
