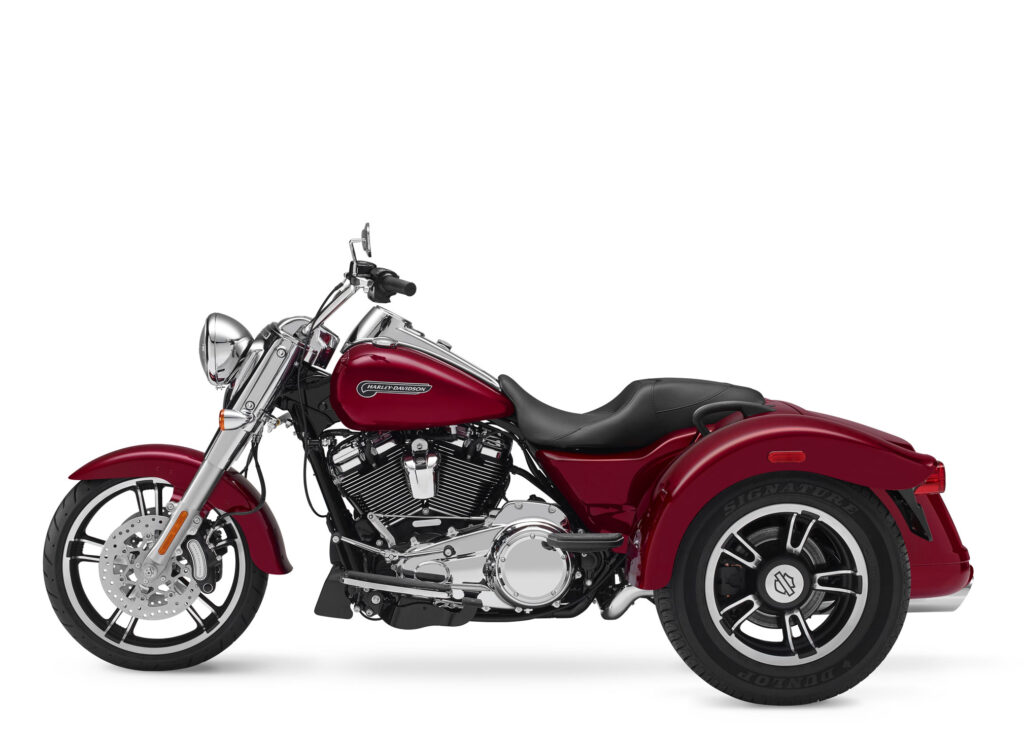

2018 Harley-Davidson Freewheeler Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Harley-Davidson Freewheeler.

Basic Specs

Year2018
MakeHarley-Davidson
ModelHarley-Davidson Freewheeler
CostUS$ 26449. Euro 32275. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1747.00 ccm (106.60 cubic inches)
TypeMilwaukee-Eight™ 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustShorty slash down-style chrome finish mufflers
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower89.00 HP (65.0 kW)
Torque150.00 Nm (15.3 kgf-m or 110.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.03 litres/100 km (16.6 km/l or 39.01 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions139.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail101 mm (4.0 inches)
Front SuspensionTelescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,615 mm (103.0 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,670 mm (65.7 inches)
Dry Weight492.0 kg (1,084.7 pounds)
Wet Weight507.0 kg (1,117.7 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B19
Rear Tire/Tyre205/65-R17
Front BrakesDouble disc. 6 piston caliper
Front Brake Diameter
Rear BrakesSingle disc. 2-piston caliper
Rear Brake Diameter
WheelsEnforcer Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Freewheeler. This Custom / cruiser model is powered by a Milwaukee-Eight™ 107 V2, four-stroke engine with 1747.00 ccm (106.60 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 89.00 HP (65.0 kW) horsepower and 150.00 Nm (15.3 kgf-m or 110.6 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Freewheeler is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-B19 and the rear is 205/65-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 6 piston caliper front brakes and Single disc. 2-piston caliper rear brakes. The Harley-Davidson Freewheeler was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Trike. Cruise control. Foot actuated dual parking brake.
