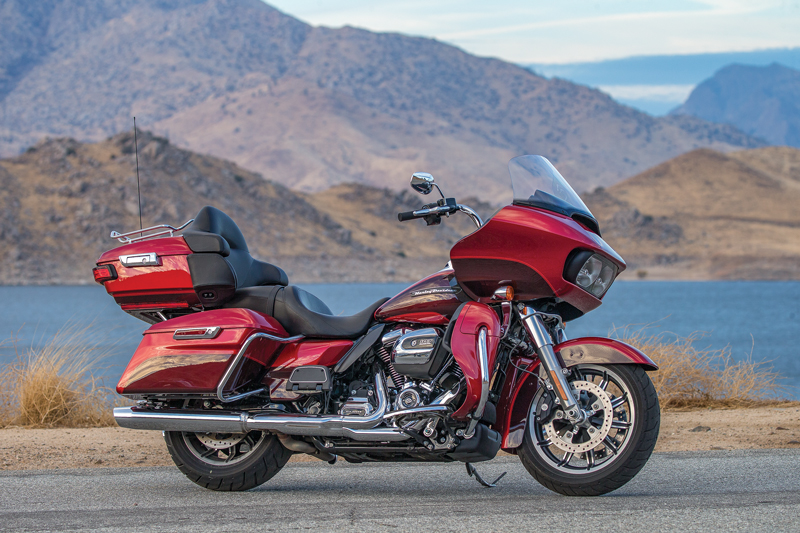

2018 Harley-Davidson Road Glide Ultra Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Harley-Davidson Road Glide Ultra.

Basic Specs

Year2018
MakeHarley-Davidson
ModelHarley-Davidson Road Glide Ultra
CostUS$ 26399. Euro 28315. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1753.52 ccm (107.00 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome dual exhaust with 4 in. touring mufflers and touring muffler shields
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower90.00 HP (65.7 kW)
Torque153.00 Nm (15.6 kgf-m or 112.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.10 litres/100 km (16.4 km/l or 38.56 mpg)
Fuel Capacity18.90 litres (4.99 gallons)
Emissions141.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height735 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,595 mm (102.2 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight408.0 kg (899.5 pounds)
Wet Weight425.0 kg (937.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsImpeller Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Road Glide Ultra. This Touring model is powered by a Twin-Cooled™ Milwaukee-Eight® 107 V2, four-stroke engine with 1753.52 ccm (107.00 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 90.00 HP (65.7 kW) horsepower and 153.00 Nm (15.6 kgf-m or 112.9 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Road Glide Ultra is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/80-B17 and the rear is 180/65-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston front brakes and Single disc. ABS. 4-piston rear brakes. The Harley-Davidson Road Glide Ultra was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Small windshield. Cruise control. Alarm. Infotainment. USB. Bluetooth.
