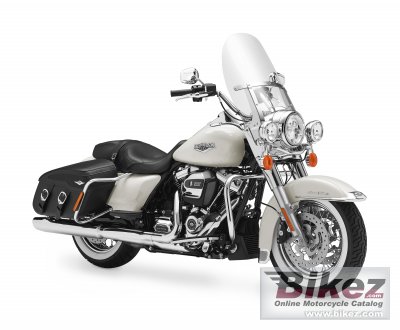

2018 Harley-Davidson Road King Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Harley-Davidson Road King Classic.

Basic Specs

Year2018
MakeHarley-Davidson
ModelHarley-Davidson Road King Classic
Cost

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeMilwaukee-Eight® 107, Integrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationDry sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower89.00 HP (65.0 kW)
Torque150.00 Nm (15.3 kgf-m or 110.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height715 mm (28.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,420 mm (95.3 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight362.0 kg (798.1 pounds)
Wet Weight376.0 kg (828.9 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. Optional ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. 4-piston
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson Road King Classic. This Touring model is powered by a Milwaukee-Eight® 107, Integrated Oil-Cooler V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 89.00 HP (65.0 kW) horsepower and 150.00 Nm (15.3 kgf-m or 110.6 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Road King Classic is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is 180/65-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS. 4-piston front brakes and Single disc. Optional ABS. 4-piston rear brakes. The Harley-Davidson Road King Classic was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
