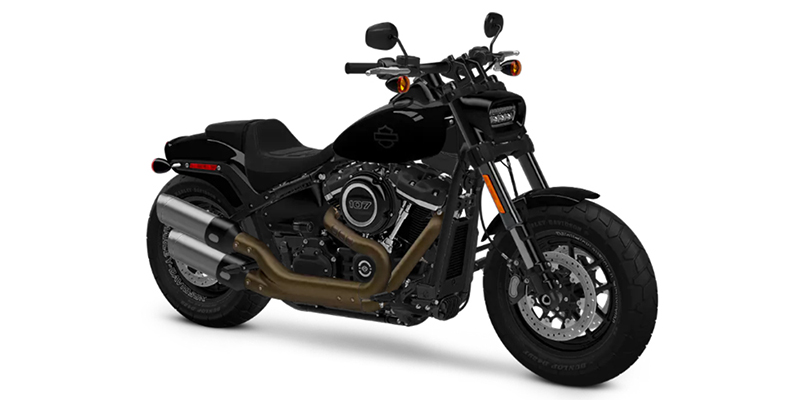

These are the known mechanical and performance specifications for your 2018 Harley-Davidson Softail Fat Bob.
Basic Specs
Year2018
MakeHarley-Davidson
ModelHarley-Davidson Softail Fat Bob
TypeCustom / cruiser
CostUS$ 16999. Euro 17895. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1745.00 ccm (106.48 cubic inches)
TypeMilwaukee-Eight® 107, optional 114 Big Twin.
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-1-into-2 dual side; catalyst in header
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower86.00 HP (62.8 kW)
Torque145.00 Nm (14.8 kgf-m or 107.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Fuel Capacity13.60 litres (3.59 gallons)
Emissions127.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake28.0°
Trail132 mm (5.2 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height710 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,340 mm (92.1 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,690 mm (66.5 inches)
Dry Weight296.0 kg (652.6 pounds)
Wet Weight306.0 kg (674.6 pounds)
Wheels & Brakes
Front Tire/Tyre150/80-16
Rear Tire/Tyre180/70-B16
Front BrakesDouble disc. ABS. 4-piston.
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston.
Rear Brake Diameter
WheelsDenim black, Structure cast aluminum with laser etched graphics
