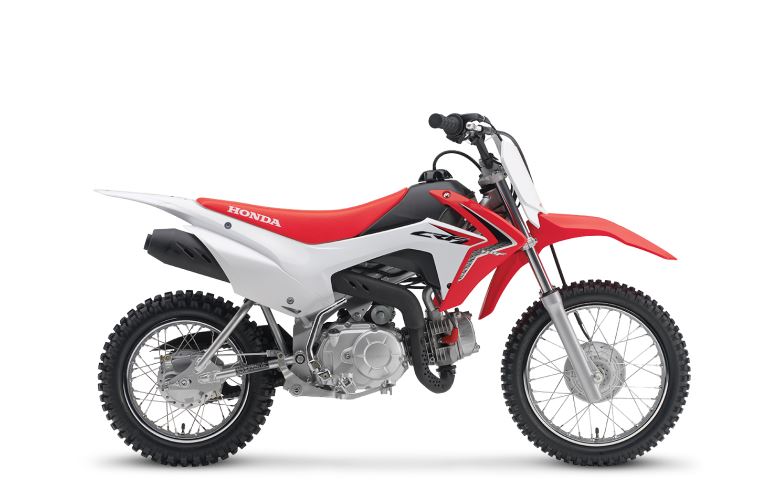

2018 Honda CRF110F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Honda CRF110F.

Basic Specs

Year2018
MakeHonda
ModelHonda CRF110F
CostUS$ 2249. Prices depend on country, taxes, accessories, etc.

Engine

Displacement109.00 ccm (6.65 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke50.0 x 55.6 mm (2.0 x 2.2 inches)
Valves/Cylinder2
FuelingCarburettor. 13mm piston-valve carburetor
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchAutomatic
Driveline

Performance

Horespower7.17 HP (5.2 kW)
Torque8.85 Nm (0.9 kgf-m or 6.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity4.16 litres (1.10 gallons)
Emissions

Chassis

Frame Type
Rake24.0°
Trail53 mm (2.1 inches)
Front Suspension31.0mm telescopic fork
Front Travel99 mm (3.9 inches)
Rear SuspensionSingle-shock
Rear Travel86 mm (3.4 inches)
Seat
Seat Height668 mm (26.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height912 mm (35.9 inches)
Total Length1,560 mm (61.4 inches)
Total Width668 mm (26.3 inches)
Ground Clearance175 mm (6.9 inches)
Wheelbase1,064 mm (41.9 inches)
Dry Weight
Wet Weight73.9 kg (163.0 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-14
Rear Tire/Tyre80/100-12
Front BrakesExpanding brake (drum brake)
Front Brake Diameter109 mm (4.3 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter109 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CRF110F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 109.00 ccm (6.65 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor. 13mm piston-valve carburetor allowing this machine to produce its 7.17 HP (5.2 kW) horsepower and 8.85 Nm (0.9 kgf-m or 6.5 ft.lbs) torque. According to our records engine heat of the Honda CRF110F is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/100-14 and the rear is 80/100-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF110F was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF110F
