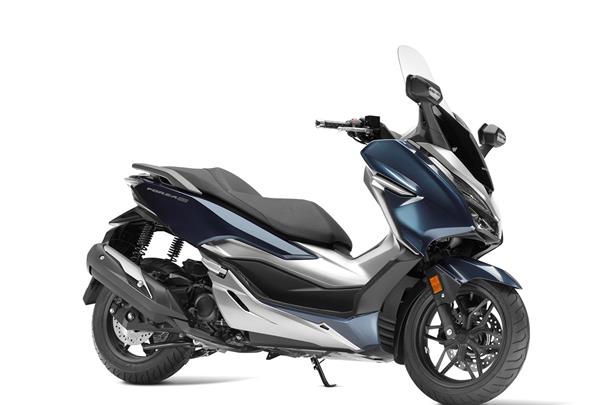

2018 Honda Forza ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Honda Forza ABS.

Basic Specs

Year2018
MakeHonda
ModelHonda Forza ABS
Cost

Engine

Displacement279.00 ccm (17.02 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke68.0 x 68.5 mm (2.7 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. PGM-Fi
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchDry-type, multi-plate shoe
DrivelineHonda V-Matic belt-converter continuously variable automatic transmission

Performance

Horespower25.48 HP (18.6 kW)
Torque26.00 Nm (2.7 kgf-m or 19.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.46 litres/100 km (28.9 km/l or 67.98 mpg)
Fuel Capacity12.00 litres (3.17 gallons)
Emissions80.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeUnderbone type
Rake27.0°
Trail89 mm (3.5 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
SeatTwo-person seat
Seat Height716 mm (28.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,180 mm (46.5 inches)
Total Length2,185 mm (86.0 inches)
Total Width750 mm (29.5 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,547 mm (60.9 inches)
Dry Weight194.1 kg (428.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-14
Rear Tire/Tyre140/70-13
Front BrakesSingle disc. ABS
Front Brake Diameter256 mm (10.1 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter249 mm (9.8 inches)
Wheels6-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda Forza ABS. This Scooter model is powered by a Single cylinder, four-stroke engine with 279.00 ccm (17.02 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Injection. PGM-Fi allowing this machine to produce its 25.48 HP (18.6 kW) horsepower and 26.00 Nm (2.7 kgf-m or 19.2 ft.lbs) torque. According to our records engine heat of the Honda Forza ABS is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-14 and the rear is 140/70-13 . The entire package is supported by the frame, Underbone type. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS front brakes and Single disc. ABS rear brakes. The Honda Forza ABS was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model id: NSS300A
