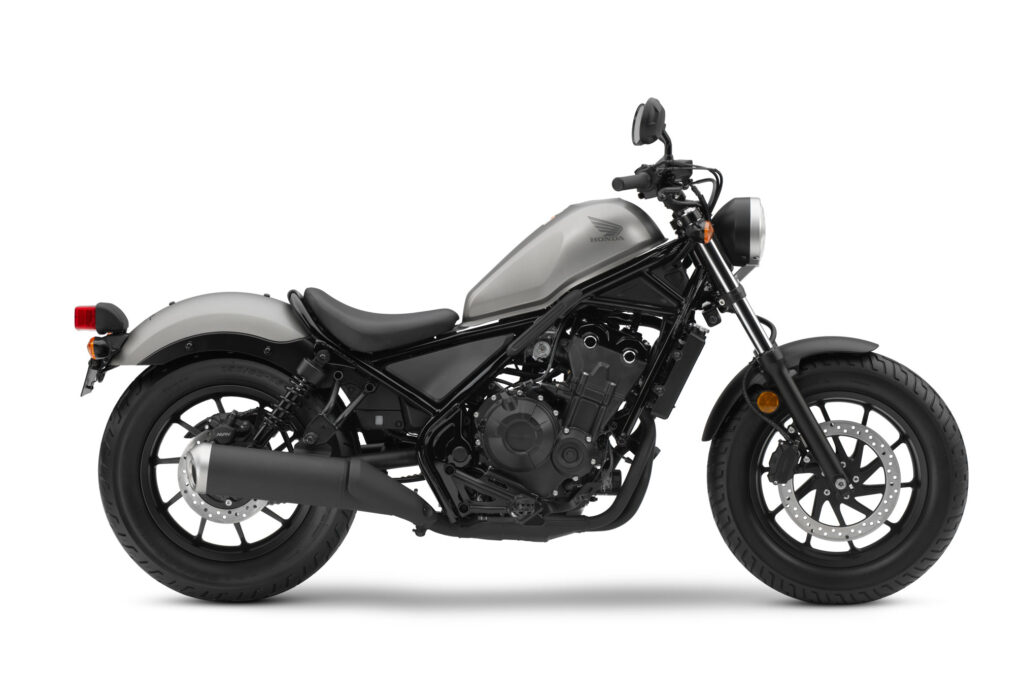

2018 Honda Rebel 500 ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Honda Rebel 500 ABS.

Basic Specs

Year2018
MakeHonda
ModelHonda Rebel 500 ABS
CostUS$ 6399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement471.00 ccm (28.74 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
Valves/Cylinder4
FuelingCarburettor
IgnitionPGM-Fi
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineO-ring-sealed chain

Performance

Horespower48.00 HP (35.0 kW)
Torque43.00 Nm (4.4 kgf-m or 31.7 ft.lbs)
Top Speed175.0 km/h (108.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity11.17 litres (2.95 gallons)
Emissions

Chassis

Frame Type
Rake28.0°
Trail110 mm (4.3 inches)
Front Suspension41mm fork
Front Travel122 mm (4.8 inches)
Rear SuspensionDual shocks
Rear Travel97 mm (3.8 inches)
Seat
Seat Height691 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,491 mm (58.7 inches)
Dry Weight187.8 kg (414.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre150/80-16
Front BrakesSingle disc. ABS
Front Brake Diameter
Rear BrakesSingle disc. ABS
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda Rebel 500 ABS. This Custom / cruiser model is powered by a Twin, four-stroke engine with 471.00 ccm (28.74 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 48.00 HP (35.0 kW) horsepower and 43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) torque. According to our records engine heat of the Honda Rebel 500 ABS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 150/80-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS front brakes and Single disc. ABS rear brakes. The Honda Rebel 500 ABS was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CMX500A
