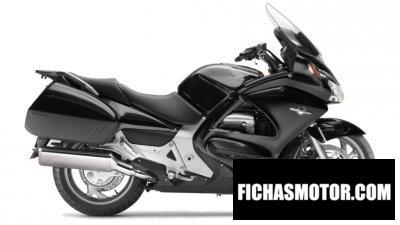

These are the known mechanical and performance specifications for your 2018 Honda ST1300 Pan-European.
Basic Specs
Engine
Displacement1261.00 ccm (76.95 cubic inches)
Type
DetailsV4, four-stroke
Max RPM
Compression10.9:1
Bore/Stroke78.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector
IgnitionComputer-controlled digital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Performance
Horespower126.00 HP (92.0 kW)
Torque125.00 Nm (12.7 kgf-m or 92.2 ft.lbs)
Top Speed225.0 km/h (139.8 mph)
Fuel Economy & Polution
Fuel Consumption6.72 litres/100 km (14.9 km/l or 35.00 mpg)
Fuel Capacity29.00 litres (7.66 gallons)
Emissions155.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDiamond triple-box-section aluminium twin-spar
Rake26.0°
Trail98 mm (3.9 inches)
Front Suspension45mm HMAS cartridge fork
Front Travel117 mm (4.6 inches)
Rear SuspensionHMAS gas-charged single shock with five-position spring-preload adjustability
Rear Travel122 mm (4.8 inches)
Seat
Seat Height778 mm (30.6 inches) If adjustable, lowest setting.
Alt. Seat Height805 mm (31.7 inches) If adjustable, highest setting.
Total Height1,390 mm (54.7 inches)
Total Length2,270 mm (89.4 inches)
Total Width860 mm (33.9 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,491 mm (58.7 inches)
Dry Weight
Wet Weight329.0 kg (725.3 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre170/60-ZR17
Front BrakesDouble disc. Floating discs. CBS three-piston calipers.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. CBS three-piston calipers.
Rear Brake Diameter316 mm (12.4 inches)
WheelsHollow-section triple-spoke cast aluminium
Comments
Model ID: ST1300
