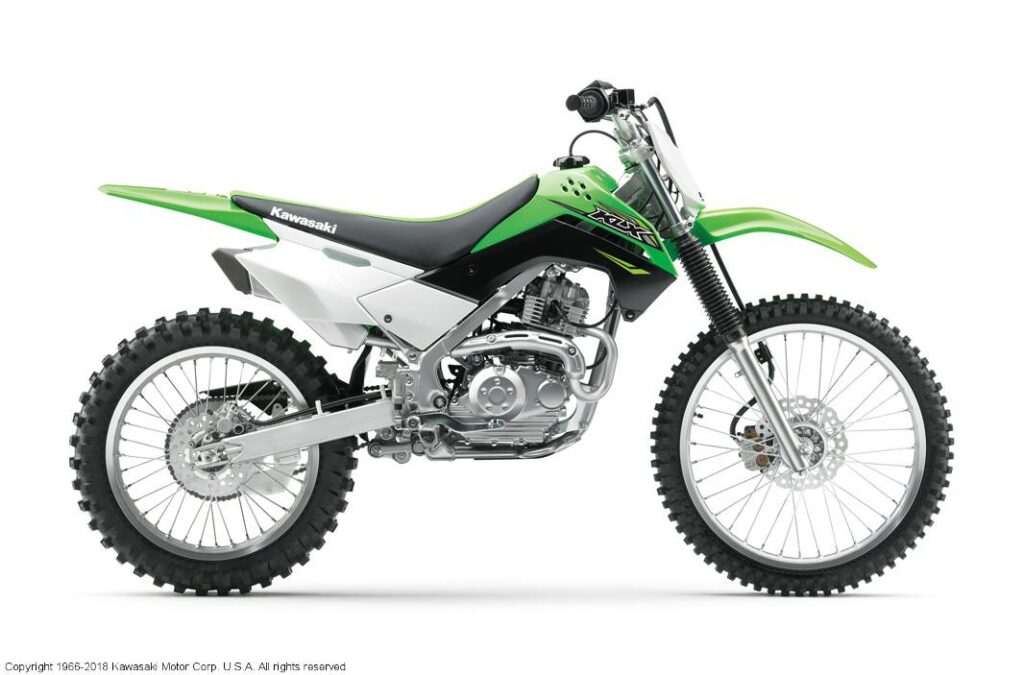

2018 Kawasaki KLX 140G Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Kawasaki KLX 140G.

Basic Specs

Year2018
MakeKawasaki
ModelKawasaki KLX 140G
CostUS$ 3699. Prices depend on country, taxes, accessories, etc.

Engine

Displacement144.00 ccm (8.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke58.0 x 54.4 mm (2.3 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PB20
IgnitionDigital DC-CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMultiplate, wet
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.68 litres (1.50 gallons)
Emissions

Chassis

Frame TypeTube, semi-double cradle
Rake27.0°
Trail84 mm (3.3 inches)
Front Suspension33mm telescopic fork
Front Travel191 mm (7.5 inches)
Rear SuspensionUni-Trak linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping
Rear Travel201 mm (7.9 inches)
Seat
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,135 mm (44.7 inches)
Total Length2,004 mm (78.9 inches)
Total Width790 mm (31.1 inches)
Ground Clearance315 mm (12.4 inches)
Wheelbase1,331 mm (52.4 inches)
Dry Weight
Wet Weight99.0 kg (218.2 pounds)

Wheels & Brakes

Front Tire/Tyre2.75-21
Rear Tire/Tyre4.10-18
Front BrakesSingle disc. Petal disc with a dual-piston caliper
Front Brake Diameter
Rear BrakesSingle disc. Petal disc with single-piston caliper
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLX 140G. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 144.00 ccm (8.79 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin PB20 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 140G is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-21 and the rear is 4.10-18 . The entire package is supported by the frame, Tube, semi-double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Petal disc with a dual-piston caliper front brakes and Single disc. Petal disc with single-piston caliper rear brakes. The Kawasaki KLX 140G was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
