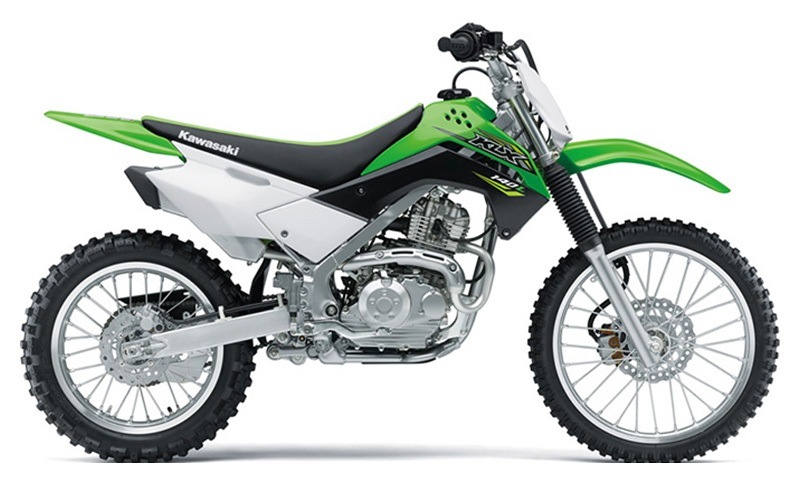

2018 Kawasaki KLX 140L Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Kawasaki KLX 140L.

Basic Specs

Year2018
MakeKawasaki
ModelKawasaki KLX 140L
CostUS$ 3399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement144.00 ccm (8.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke58.0 x 54.4 mm (2.3 x 2.1 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin PB20
IgnitionDigital DC-CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMulti disc, wet
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.68 litres (1.50 gallons)
Emissions

Chassis

Frame TypeHigh-Tensile steel, box-section perimeter
Rake27.0°
Trail97 mm (3.8 inches)
Front Suspension33mm telescopic fork
Front Travel180 mm (7.1 inches)
Rear SuspensionUni-Trak linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping
Rear Travel180 mm (7.1 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,074 mm (42.3 inches)
Total Length1,895 mm (74.6 inches)
Total Width790 mm (31.1 inches)
Ground Clearance254 mm (10.0 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight
Wet Weight95.0 kg (209.4 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc. Petal disc with a dual-piston caliper
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. Petal disc with single-piston caliper
Rear Brake Diameter186 mm (7.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLX 140L. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 144.00 ccm (8.79 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin PB20 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 140L is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/100-19 and the rear is 90/100-16 . The entire package is supported by the frame, High-Tensile steel, box-section perimeter. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Petal disc with a dual-piston caliper front brakes and Single disc. Petal disc with single-piston caliper rear brakes. The Kawasaki KLX 140L was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
