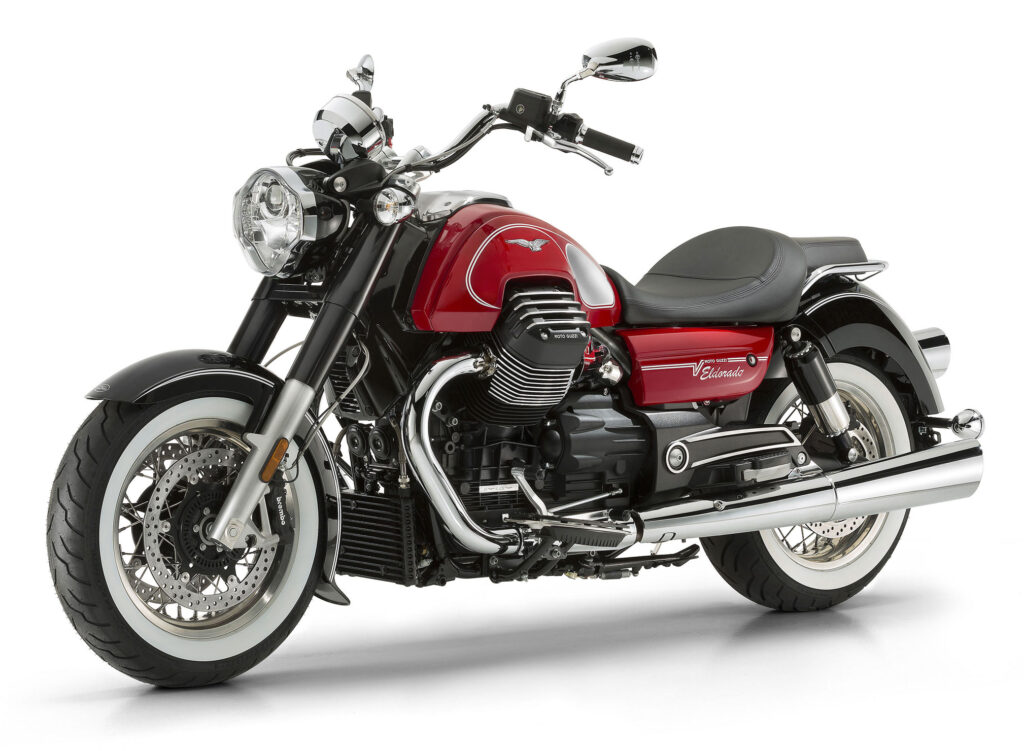

These are the known mechanical and performance specifications for your 2018 Moto Guzzi Eldorado.
Basic Specs
Year2018
MakeMoto Guzzi
ModelMoto Guzzi Eldorado
TypeClassic
CostUS$ 16490. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1380.00 ccm (84.21 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke104.0 x 81.2 mm (4.1 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. Weber-Marelli electronic fuel injection.
Ignition
ExhaustStainless steel, 2-in-2 type, 3-way catalytic converter with double oxygen sensor
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDry single plate with flexible couplings
DrivelineCA.R.C. Compact Reactive Shaft Drive
Performance
Horespower96.00 HP (70.1 kW)
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.44 litres (5.40 gallons)
Emissions
Chassis
Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Rake33.0°
Trail144 mm (5.7 inches)
Front SuspensionStandard swingarm 46 mm, with radical calliper mountain bracket and telescopes on the stanchions
Front Travel120 mm (4.7 inches)
Rear SuspensionSwingarm with double shock absorber adjustable spring preload
Rear Travel120 mm (4.7 inches)
Seat
Seat Height740 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,113 mm (43.8 inches)
Total Length2,445 mm (96.3 inches)
Total Width940 mm (37.0 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,695 mm (66.7 inches)
Dry Weight
Wet Weight314.0 kg (692.3 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-18
Rear Tire/Tyre130/80-17
Front BrakesDouble disc. ABS. Floating discs.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc.
Rear Brake Diameter282 mm (11.1 inches)
WheelsPolished aluminum, spoked. Metzeler Lasertec tyres.
Comments
Ride by Wire with 3 engine maps
