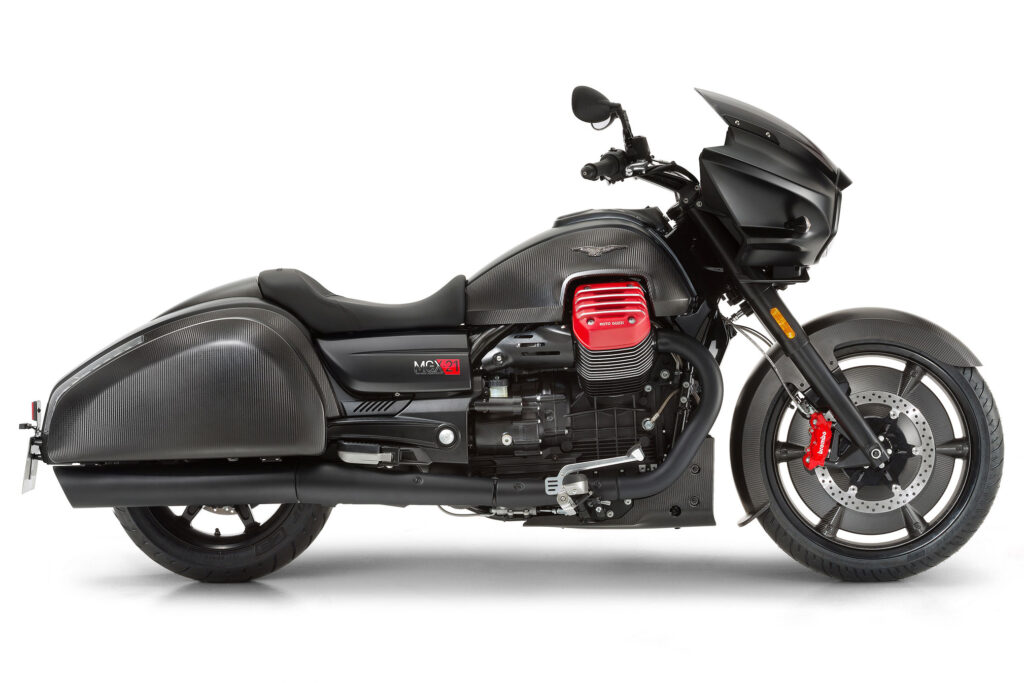

2018 Moto Guzzi MGX-21 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Moto Guzzi MGX-21.

Basic Specs

Year2018
MakeMoto Guzzi
ModelMoto Guzzi MGX-21
CostUS$ 21990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1380.00 ccm (84.21 cubic inches)
Type90° transverse V-twin. Dual sparks.
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke104.0 x 81.2 mm (4.1 x 3.2 inches)
Valves/Cylinder2
FuelingInjection. Weber-Marelli electronic fuel injection.
Ignition
ExhaustBlack stainless steel, 2 in 2 with crossover and 3 - way catalytic converter, double lambda probe
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDry single plate with flexible couplings
Driveline

Performance

Horespower96.50 HP (70.4 kW)
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.50 litres (5.42 gallons)
Emissions

Chassis

Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Rake32.0°
Trail187 mm (7.4 inches)
Front SuspensionTelescopic fork
Front Travel108 mm (4.2 inches)
Rear SuspensionSwingarm with double shock absorber with adjustable spring preload
Rear Travel120 mm (4.7 inches)
Seat
Seat Height740 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,275 mm (50.2 inches)
Total Length2,560 mm (100.8 inches)
Total Width920 mm (36.2 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,700 mm (66.9 inches)
Dry Weight341.0 kg (751.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-21
Rear Tire/Tyre180/60-16
Front BrakesDouble disc. ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter282 mm (11.1 inches)
WheelsCast aluminium

Comments

It appears you're interested in specifications for the Moto Guzzi MGX-21. This Custom / cruiser model is powered by a 90° transverse V-twin. Dual sparks. V2, four-stroke engine with 1380.00 ccm (84.21 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Weber-Marelli electronic fuel injection. allowing this machine to produce its 96.50 HP (70.4 kW) horsepower and 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) torque. According to our records engine heat of the Moto Guzzi MGX-21 is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-21 and the rear is 180/60-16 . The entire package is supported by the frame, Double cradle tubular frame in ALS steel with detachable rear subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Moto Guzzi MGX-21 was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
