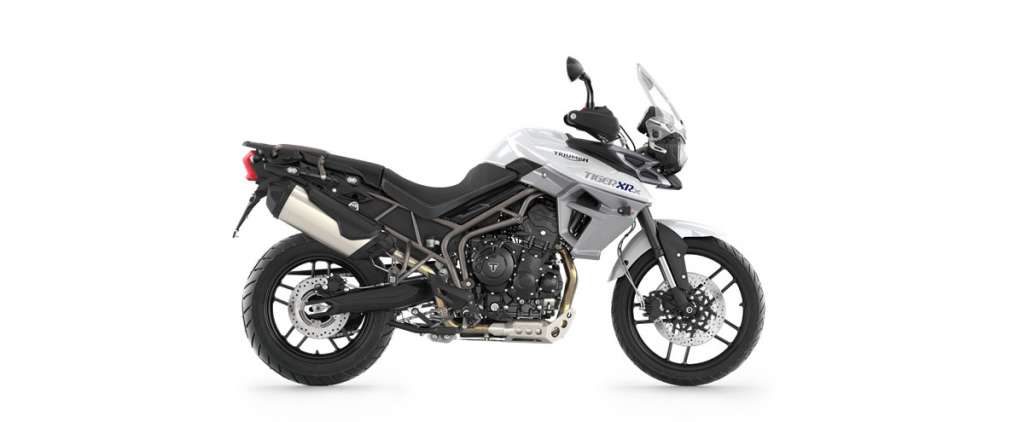

These are the known mechanical and performance specifications for your 2018 Triumph Tiger 800 XRX Low.
Basic Specs


Year2018
MakeTriumph
ModelTriumph Tiger 800 XRX Low
TypeSuper motard
CostUS$ 13900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement799.00 ccm (48.75 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke74.0 x 61.9 mm (2.9 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic fuel injection
Ignition
ExhaustStainless steel 3 into 1. high level stainless steel silencer
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet. multi-plate
DrivelineO ring chain
Performance
Horespower95.00 HP (69.3 kW)
Torque79.00 Nm (8.1 kgf-m or 58.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions
Chassis
Frame TypeTubular steel trellis. Twin-sided, cast aluminium alloy swingarm.
Rake23.8°
Trail86 mm (3.4 inches)
Front SuspensionWP 43 mm upside down forks, adjustable rebound and compression damping
Front Travel140 mm (5.5 inches)
Rear SuspensionWP monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
Rear Travel150 mm (5.9 inches)
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height780 mm (30.7 inches) If adjustable, highest setting.
Total Height1,390 mm (54.7 inches)
Total Length2,200 mm (86.6 inches)
Total Width795 mm (31.3 inches)
Ground Clearance
Wheelbase1,530 mm (60.2 inches)
Dry Weight200.0 kg (440.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc. Floating discs, Brembo 2-piston sliding calipers, Switchable ABS.
Front Brake Diameter308 mm (12.1 inches)
Rear BrakesSingle disc. Nissin single piston sliding caliper, Switchable ABS.
Rear Brake Diameter255 mm (10.0 inches)
WheelsCast aluminium alloy 10-spoke
Comments
Windscreen. Traction control. Cruise control.
