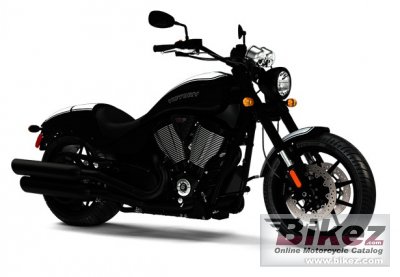

These are the known mechanical and performance specifications for your 2018 Victory Hammer S.
Basic Specs
Year2018
MakeVictory
ModelVictory Hammer S
TypeCustom / cruiser
CostUS$ 15599. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1731.00 ccm (105.63 cubic inches)
Type50 degree V-Twin. Self-adjusting cam chains, hydraulic lifters.
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke101.0 x 108.0 mm (4.0 x 4.3 inches)
Valves/Cylinder4
FuelingInjection. Electronic Fuel Injection with dual 45mm throttle body
Ignition
Exhaust2-into-1 Stage 1 exhaust system
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchWet Multi-Plate/Diaphragm Spring
DrivelineCarbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator.
Performance
Horespower97.00 HP (70.8 kW)
Torque153.23 Nm (15.6 kgf-m or 113.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions
Chassis
Frame Type
Rake33.0°
Trail140 mm (5.5 inches)
Front SuspensionInverted cartridge telescopic fork, 43 mm diameter
Front Travel130 mm (5.1 inches)
Rear SuspensionSingle, mono-tube gas, cast aluminum with rising rate linkage, preload adjustable spring
Rear Travel100 mm (3.9 inches)
Seat
Seat Height673 mm (26.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,365 mm (93.1 inches)
Total Width
Ground Clearance153 mm (6.0 inches)
Wheelbase1,669 mm (65.7 inches)
Dry Weight
Wet Weight305.0 kg (672.4 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-R18
Rear Tire/Tyre250/40-R18
Front BrakesDouble disc. Floating rotor with 4-piston calipers
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating rotor with 2-piston caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels
