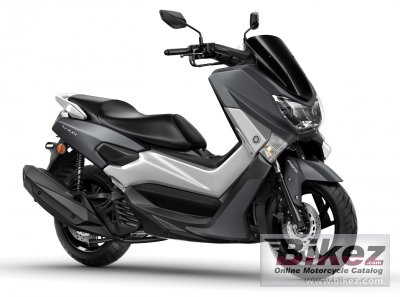

2018 Yamaha NMAX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Yamaha NMAX.

Basic Specs

Year2018
MakeYamaha
ModelYamaha NMAX
Cost

Engine

Displacement124.66 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke52.0 x 58.6 mm (2.0 x 2.3 inches)
Valves/Cylinder4
FuelingInjection. EFI
IgnitionTransistorised
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineV-Belt Automatic

Performance

Horespower12.07 HP (8.8 kW)
Torque11.70 Nm (1.2 kgf-m or 8.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.60 litres (1.74 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel110 mm (4.3 inches)
Rear SuspensionUnit Swing, monoshock
Rear Travel84 mm (3.3 inches)
Seat
Seat Height765 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length1,955 mm (77.0 inches)
Total Width740 mm (29.1 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1,350 mm (53.1 inches)
Dry Weight
Wet Weight127.0 kg (280.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-13
Rear Tire/Tyre130/70-13
Front BrakesSingle disc. Hydraulic. ABS.
Front Brake Diameter230 mm (9.1 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter230 mm (9.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha NMAX. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.66 ccm (7.61 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 12.07 HP (8.8 kW) horsepower and 11.70 Nm (1.2 kgf-m or 8.6 ft.lbs) torque. According to our records engine heat of the Yamaha NMAX is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 110/70-13 and the rear is 130/70-13 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. ABS. front brakes and Single disc. ABS. rear brakes. The Yamaha NMAX was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
