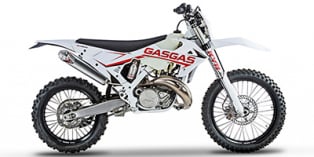

2019 GAS GAS ECRanger 200 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 GAS GAS ECRanger 200.

Basic Specs

Year2019
MakeGAS GAS
ModelGAS GAS ECRanger 200
Cost

Engine

Displacement199.40 ccm (12.17 cubic inches)
TypeReed valve.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke62.5 x 65.0 mm (2.5 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionElectronic
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMultidisc in oil bath
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.80 litres (2.59 gallons)
Emissions

Chassis

Frame TypeCenter frame in chrome-moly-steelframe
Rake
Trail
Front SuspensionKYB Ø46, open cartridge
Front Travel
Rear SuspensionAluminium swingarm with Linkage system
Rear Travel
Seat
Seat Height940 mm (37.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,205 mm (47.4 inches)
Total Length2,145 mm (84.4 inches)
Total Width810 mm (31.9 inches)
Ground Clearance
Wheelbase1,480 mm (58.3 inches)
Dry Weight108.0 kg (238.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc. Wave disc. Two-piston calipers.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Wave disc. Single-piston caliper.
Rear Brake Diameter220 mm (8.7 inches)
WheelsMorad Aluminium spoke rim

Comments

It appears you're interested in specifications for the GAS GAS ECRanger 200. This Enduro / offroad model is powered by a Reed valve. Single cylinder, two-stroke engine with 199.40 ccm (12.17 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the GAS GAS ECRanger 200 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/90-18 . The entire package is supported by the frame, Center frame in chrome-moly-steelframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Wave disc. Two-piston calipers. front brakes and Single disc. Wave disc. Single-piston caliper. rear brakes. The GAS GAS ECRanger 200 was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Spanish brand.
