2019 Harley-Davidson CVO Road Glide Specs

motorcycle specs

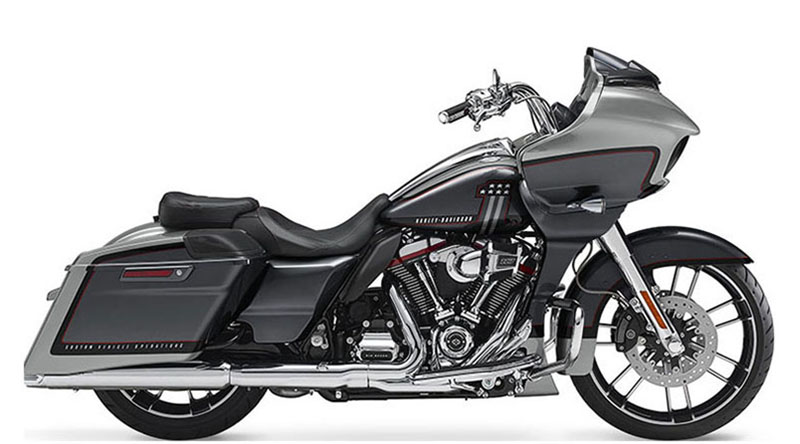

These are the known mechanical and performance specifications for your 2019 Harley-Davidson CVO Road Glide.

Basic Specs

Year2019
MakeHarley-Davidson
ModelHarley-Davidson CVO Road Glide
CostUS$ 42339. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1923.00 ccm (117.34 cubic inches)
TypeMilwaukee-Eight™ 117
DetailsV2, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke103.5 x 114.3 mm (4.1 x 4.5 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustDual, with crossover
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower105.00 HP (76.6 kW)
Torque169.50 Nm (17.3 kgf-m or 125.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.74 litres/100 km (17.4 km/l or 40.98 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions133.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail173 mm (6.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,460 mm (96.9 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight385.0 kg (848.8 pounds)
Wet Weight401.0 kg (884.1 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B21
Rear Tire/Tyre180/55-B18
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsGloss Black and Contrast Chrome Knockout

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Road Glide. This Touring model is powered by a Milwaukee-Eight™ 117 V2, four-stroke engine with 1923.00 ccm (117.34 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Injection. ESPFI allowing this machine to produce its 105.00 HP (76.6 kW) horsepower and 169.50 Nm (17.3 kgf-m or 125.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson CVO Road Glide is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-B21 and the rear is 180/55-B18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston front brakes and Single disc. ABS. 4-piston rear brakes. The Harley-Davidson CVO Road Glide was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Small windshield. Cruise control. Infotainment. USB.
