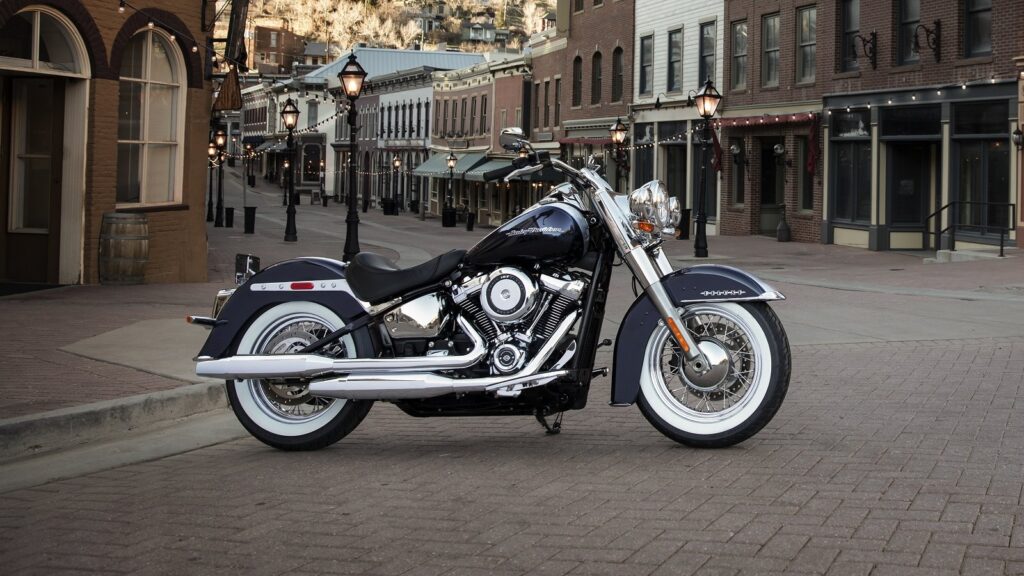

2019 Harley-Davidson Softail Deluxe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Harley-Davidson Softail Deluxe.

Basic Specs

Year2019
MakeHarley-Davidson
ModelHarley-Davidson Softail Deluxe
CostUS$ 18049. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1746.00 ccm (106.54 cubic inches)
TypeMilwaukee-Eight® 107
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-2 shorty dual; catalyst in muffler
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio

Performance

Horespower86.00 HP (62.8 kW)
Torque147.80 Nm (15.1 kgf-m or 109.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Fuel Capacity18.93 litres (5.00 gallons)
Emissions127.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake30.0°
Trail145 mm (5.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height658 mm (25.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,415 mm (95.1 inches)
Total Width
Ground Clearance115 mm (4.5 inches)
Wheelbase1,631 mm (64.2 inches)
Dry Weight303.0 kg (668.0 pounds)
Wet Weight316.0 kg (696.7 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/TyreMU85-B16
Front BrakesSingle disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston
Rear Brake Diameter
WheelsChrome Steel Laced

Comments

It appears you're interested in specifications for the Harley-Davidson Softail Deluxe. This Custom / cruiser model is powered by a Milwaukee-Eight® 107 V2, four-stroke engine with 1746.00 ccm (106.54 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 86.00 HP (62.8 kW) horsepower and 147.80 Nm (15.1 kgf-m or 109.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Softail Deluxe is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is MU85-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. 4-piston front brakes and Single disc. ABS. 2-piston rear brakes. The Harley-Davidson Softail Deluxe was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
