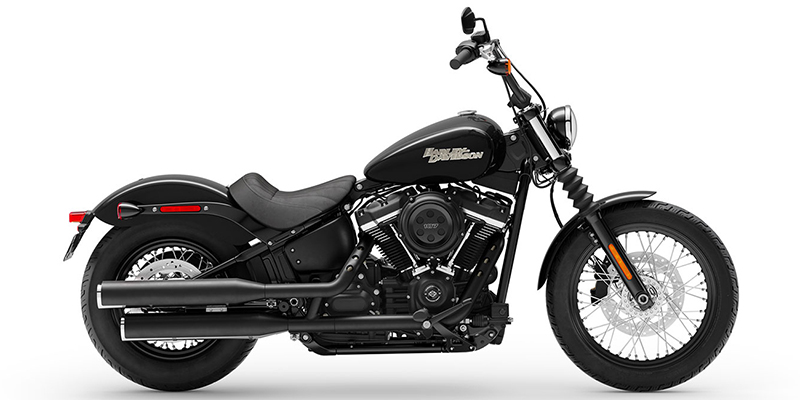

These are the known mechanical and performance specifications for your 2019 Harley-Davidson Softail Street Bob.
Basic Specs
Year2019
MakeHarley-Davidson
ModelHarley-Davidson Softail Street Bob
TypeCustom / cruiser
CostUS$ 14549. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1746.00 ccm (106.54 cubic inches)
TypeMilwaukee-Eight® 107
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-into-2 offset shotgun; catalyst in muffler
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain 34/46 ratio primary drive
Performance
Horespower86.00 HP (62.8 kW)
Torque145.00 Nm (14.8 kgf-m or 107.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Fuel Capacity13.20 litres (3.49 gallons)
Emissions127.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.0°
Trail157 mm (6.2 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,320 mm (91.3 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight286.0 kg (630.5 pounds)
Wet Weight297.0 kg (654.8 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-B19
Rear Tire/Tyre150/80-b16
Front BrakesSingle disc. Optional ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. 2-piston
Rear Brake Diameter
WheelsWire spoked
