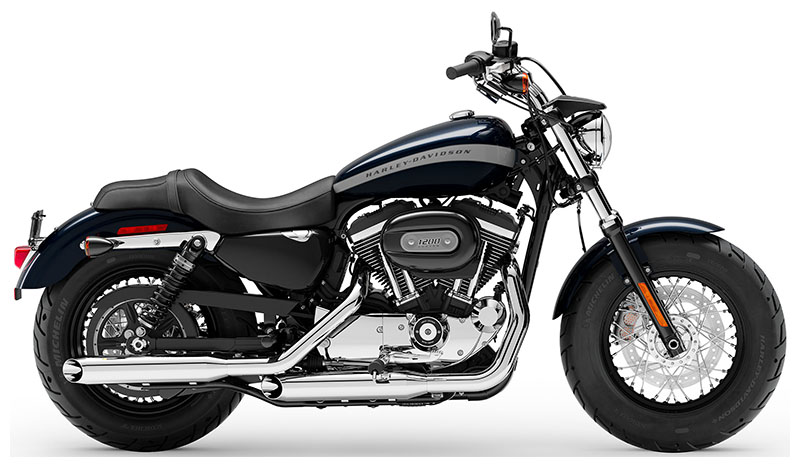

These are the known mechanical and performance specifications for your 2019 Harley-Davidson Sportster 1200 Custom.
Basic Specs
Year2019
MakeHarley-Davidson
ModelHarley-Davidson Sportster 1200 Custom
TypeCustom / cruiser
CostUS$ 10999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1202.00 ccm (73.35 cubic inches)
TypeAir-cooled, Evolution®
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered exhaust with slash-cut mufflers
LubricationDry sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower67.00 HP (48.9 kW)
Torque98.99 Nm (10.1 kgf-m or 73.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.0°
Trail107 mm (4.2 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height725 mm (28.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,225 mm (87.6 inches)
Total Width
Ground Clearance105 mm (4.1 inches)
Wheelbase1,530 mm (60.2 inches)
Dry Weight255.0 kg (562.2 pounds)
Wet Weight268.0 kg (590.8 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Dual piston, optional ABS.
Front Brake Diameter
Rear BrakesSingle disc. Dual piston, optional ABS.
Rear Brake Diameter
WheelsChrome, 5-Spoke Cast Aluminum
