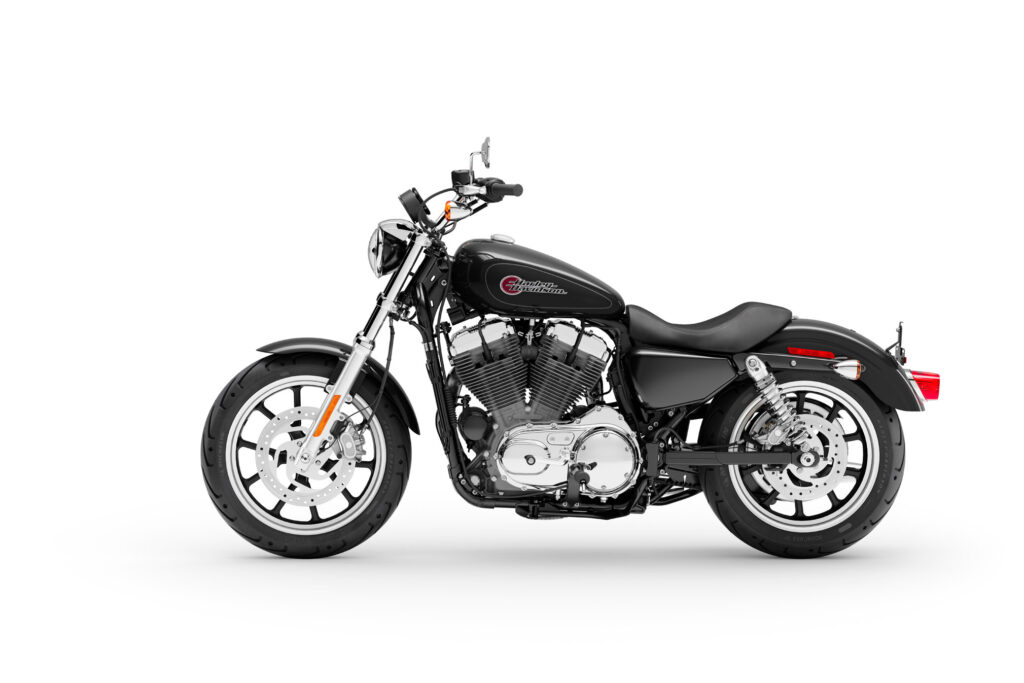

2019 Harley-Davidson Sportster Superlow Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Harley-Davidson Sportster Superlow.

Basic Specs

Year2019
MakeHarley-Davidson
ModelHarley-Davidson Sportster Superlow
CostUS$ 8699. Prices depend on country, taxes, accessories, etc.

Engine

Displacement883.00 ccm (53.88 cubic inches)
TypeAir-cooled, Evolution®
DetailsV2, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke76.2 x 96.8 mm (3.0 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, staggered, shorty exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/57 ratio primary drive

Performance

Horespower52.30 HP (38.2 kW)
Torque74.58 Nm (7.6 kgf-m or 55.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.60 litres/100 km (21.7 km/l or 51.13 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions106.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake31.1°
Trail145 mm (5.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,225 mm (87.6 inches)
Total Width
Ground Clearance100 mm (3.9 inches)
Wheelbase1,501 mm (59.1 inches)
Dry Weight247.0 kg (544.5 pounds)
Wet Weight258.0 kg (568.8 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre150/60-ZR17
Front BrakesSingle disc. Optional ABS. Two-piston calliper.
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. Two-piston calliper.
Rear Brake Diameter
WheelsBlack, Split 5-Spoke with Machined Rim

Comments

It appears you're interested in specifications for the Harley-Davidson Sportster Superlow. This Custom / cruiser model is powered by a Air-cooled, Evolution® V2, four-stroke engine with 883.00 ccm (53.88 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its 52.30 HP (38.2 kW) horsepower and 74.58 Nm (7.6 kgf-m or 55.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Sportster Superlow is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 150/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Optional ABS. Two-piston calliper. front brakes and Single disc. Optional ABS. Two-piston calliper. rear brakes. The Harley-Davidson Sportster Superlow was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Standard and optional wheels may vary by country and region.
