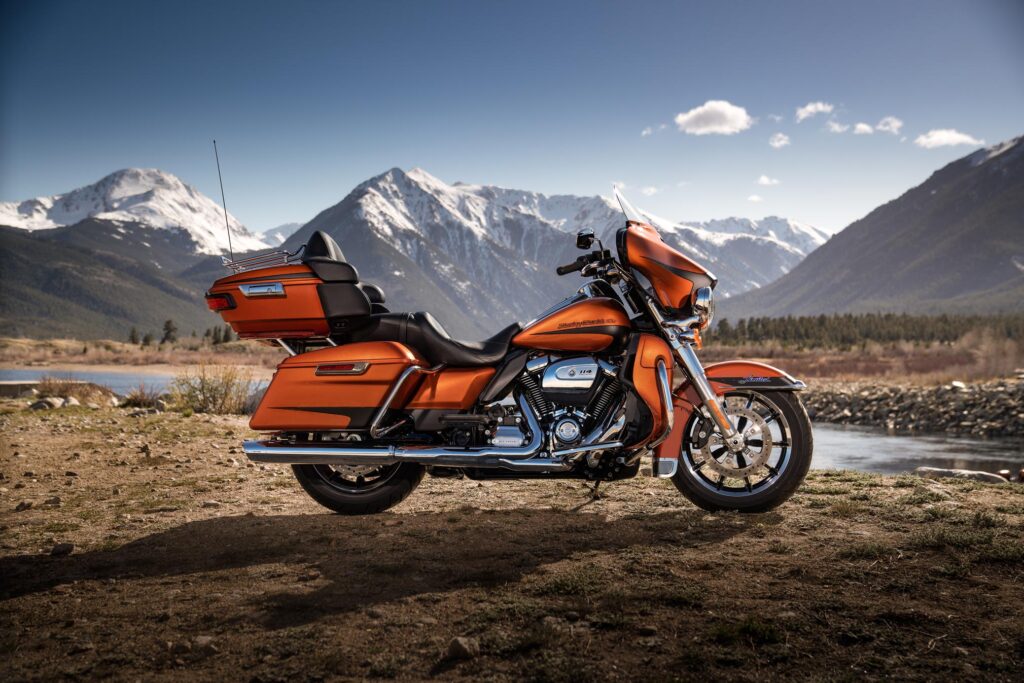

2019 Harley-Davidson Ultra Limited Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Harley-Davidson Ultra Limited.

Basic Specs

Year2019
MakeHarley-Davidson
ModelHarley-Davidson Ultra Limited
CostUS$ 28089. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1868.00 ccm (113.99 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 114
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.0 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationDry sump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower90.00 HP (65.7 kW)
Torque165.43 Nm (16.9 kgf-m or 122.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height740 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,600 mm (102.4 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight398.0 kg (877.4 pounds)
Wet Weight413.0 kg (910.5 pounds)

Wheels & Brakes

Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsContrast Chrome Impeller Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson Ultra Limited. This Touring model is powered by a Twin-Cooled™ Milwaukee-Eight® 114 V2, four-stroke engine with 1868.00 ccm (113.99 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its 90.00 HP (65.7 kW) horsepower and 165.43 Nm (16.9 kgf-m or 122.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Ultra Limited is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/80-B17 and the rear is 180/65-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. 4-piston front brakes and Single disc. ABS. 4-piston rear brakes. The Harley-Davidson Ultra Limited was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windshield. Infotainment. USB. Bluetooth.
