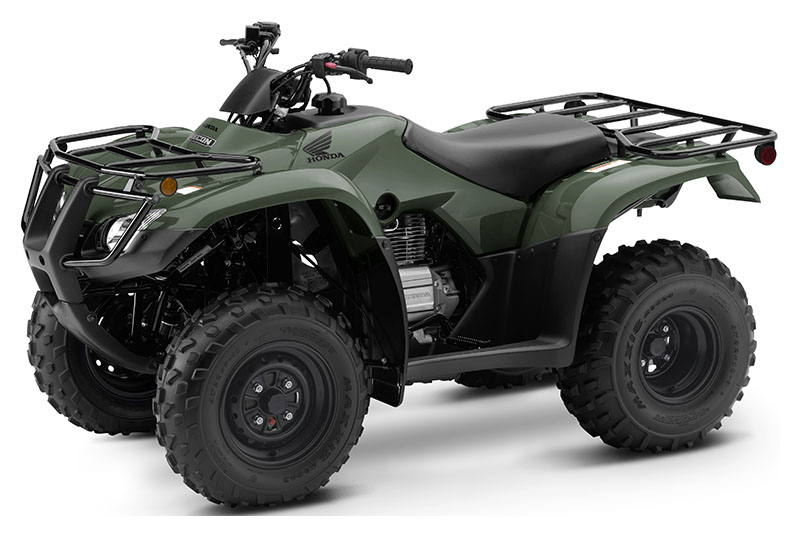

2019 Honda FourTrax Recon Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Honda FourTrax Recon.

Basic Specs

Year2019
MakeHonda
ModelHonda FourTrax Recon
TypeATV
CostUS$ 4199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement229.00 ccm (13.97 cubic inches)
TypeLongitudinally mounted
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke68.5 x 62.2 mm (2.7 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. 22mm
IgnitionCD with electronic advance
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchAutomatic
DrivelineDirect rear driveshaft with reverse

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.08 litres (2.40 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel130 mm (5.1 inches)
Rear SuspensionSwingarm with single shock
Rear Travel124 mm (4.9 inches)
Seat
Seat Height792 mm (31.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,069 mm (42.1 inches)
Total Length1,905 mm (75.0 inches)
Total Width1,034 mm (40.7 inches)
Ground Clearance152 mm (6.0 inches)
Wheelbase1,130 mm (44.5 inches)
Dry Weight
Wet Weight196.9 kg (434.0 pounds)

Wheels & Brakes

Front Tire/Tyre22/7-11
Rear Tire/Tyre22/10-9
Front BrakesExpanding brake (drum brake). Dual sealed hydraulic drum
Front Brake Diameter
Rear BrakesExpanding brake (drum brake). Sealed mechanical drum
Rear Brake Diameter
WheelsBlack

Comments

It appears you're interested in specifications for the Honda FourTrax Recon. This ATV model is powered by a Longitudinally mounted Single cylinder, four-stroke engine with 229.00 ccm (13.97 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. 22mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda FourTrax Recon is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 22/7-11 and the rear is 22/10-9 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Dual sealed hydraulic drum front brakes and Expanding brake (drum brake). Sealed mechanical drum rear brakes. The Honda FourTrax Recon was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: TRX250TM.
