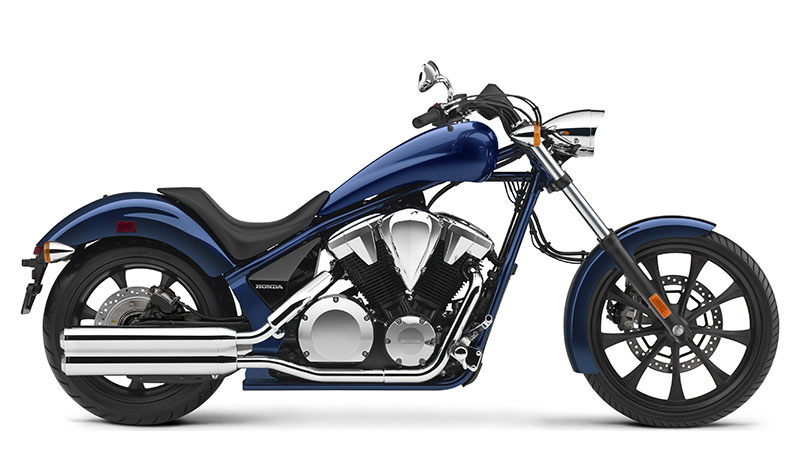

2019 Honda Fury ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Honda Fury ABS.

Basic Specs

Year2019
MakeHonda
ModelHonda Fury ABS
CostUS$ 10599. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1312.00 ccm (80.06 cubic inches)
Type52 degrees V-twin
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder3
FuelingInjection. PGM-FI with automatic enricher circuit, one 38mm throttle body
IgnitionDigital with three-dimensional mapping, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchMultiplate wet
Driveline

Performance

Horespower
Torque89.50 Nm (9.1 kgf-m or 66.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.23 litres/100 km (19.1 km/l or 44.98 mpg)
Fuel Capacity12.87 litres (3.40 gallons)
Emissions121.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeHigh-Tensile Steel
Rake32.0°
Trail92 mm (3.6 inches)
Front Suspension45mm fork
Front Travel102 mm (4.0 inches)
Rear SuspensionSingle shock with adjustable rebound-damping and five-position spring-preload adjustability
Rear Travel94 mm (3.7 inches)
Seat
Seat Height683 mm (26.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,151 mm (45.3 inches)
Total Length2,555 mm (100.6 inches)
Total Width899 mm (35.4 inches)
Ground Clearance124 mm (4.9 inches)
Wheelbase1,803 mm (71.0 inches)
Dry Weight
Wet Weight308.9 kg (681.0 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre200/50-18
Front BrakesDouble disc. Two-piston calipers. ABS.
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc. Single-piston caliper. ABS.
Rear Brake Diameter296 mm (11.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda Fury ABS. This Custom / cruiser model is powered by a 52 degrees V-twin V2, four-stroke engine with 1312.00 ccm (80.06 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. PGM-FI with automatic enricher circuit, one 38mm throttle body allowing this machine to produce its horsepower and 89.50 Nm (9.1 kgf-m or 66.0 ft.lbs) torque. According to our records engine heat of the Honda Fury ABS is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 200/50-18 . The entire package is supported by the frame, High-Tensile Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Two-piston calipers. ABS. front brakes and Single disc. Single-piston caliper. ABS. rear brakes. The Honda Fury ABS was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model id: VT13CXA.
