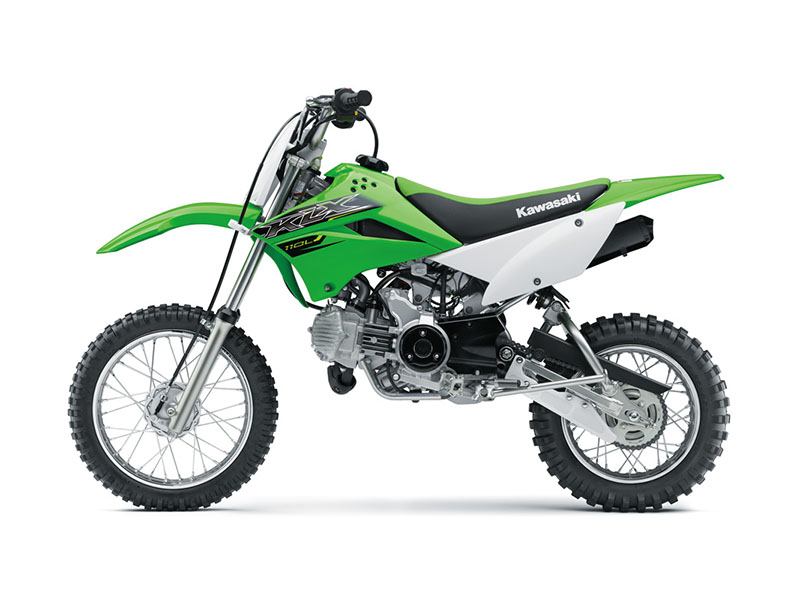

2019 Kawasaki KLX 110L Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Kawasaki KLX 110L.

Basic Specs

Year2019
MakeKawasaki
ModelKawasaki KLX 110L
CostUS$ 2499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement111.00 ccm (6.77 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke53.0 x 50.6 mm (2.1 x 2.0 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin PB18
IgnitionDC-CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.79 litres (1.00 gallons)
Emissions

Chassis

Frame TypeBackbone frame, high-tensile steel
Rake24.2°
Trail48 mm (1.9 inches)
Front Suspension30mm hydraulic telescopic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSwingarm with single hydraulic shock
Rear Travel132 mm (5.2 inches)
Seat
Seat Height729 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height991 mm (39.0 inches)
Total Length1,560 mm (61.4 inches)
Total Width655 mm (25.8 inches)
Ground Clearance264 mm (10.4 inches)
Wheelbase1,074 mm (42.3 inches)
Dry Weight
Wet Weight76.2 kg (168.0 pounds)

Wheels & Brakes

Front Tire/Tyre2.50-14
Rear Tire/Tyre3.00-12
Front BrakesExpanding brake (drum brake)
Front Brake Diameter110 mm (4.3 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLX 110L. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 111.00 ccm (6.77 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin PB18 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 110L is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.50-14 and the rear is 3.00-12 . The entire package is supported by the frame, Backbone frame, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Kawasaki KLX 110L was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
