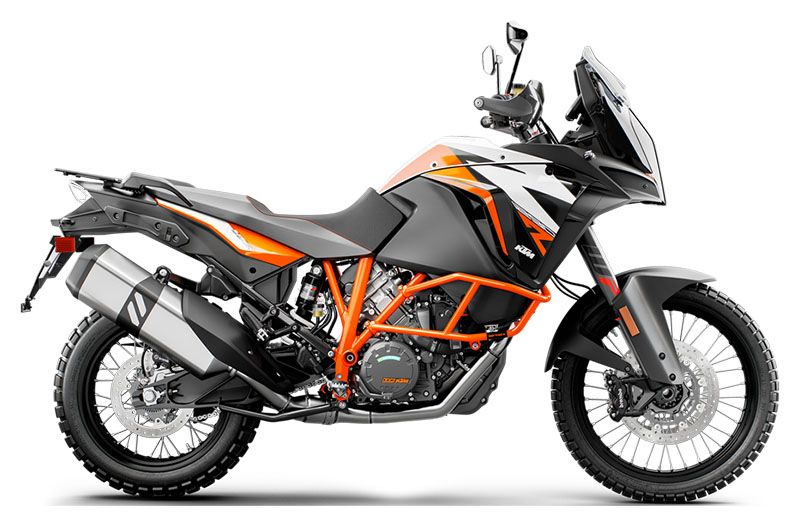

2019 KTM 1290 Super Adventure R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 KTM 1290 Super Adventure R.

Basic Specs

Year2019
MakeKTM
ModelKTM 1290 Super Adventure R
Cost

Engine

Displacement1301.00 ccm (79.39 cubic inches)
Type75° V arrangement
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke108.0 x 71.0 mm (4.3 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionKeihin EMS with RBW and cruise control, double ignition
Exhaust
LubricationForced oil lubrication with 3 pumps
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchPASC slipper clutch, hydraulically actuated
Driveline5/8  x  5/16 X Ring. Primary drive: 40:76.

Performance

Horespower160.00 HP (116.8 kW)
Torque140.00 Nm (14.3 kgf-m or 103.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeChromium-Molybdenum steel trellis frame, powder coated
Rake26.0°
Trail
Front SuspensionWP USD Ø 48 mm
Front Travel220 mm (8.7 inches)
Rear SuspensionWP-PDS Monoshock
Rear Travel220 mm (8.7 inches)
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height875 mm (34.4 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance250 mm (9.8 inches)
Wheelbase1,580 mm (62.2 inches)
Dry Weight217.0 kg (478.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre150/70-18
Front BrakesDouble disc. ABS. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Two-piston calipers.
Rear Brake Diameter267 mm (10.5 inches)
WheelsWire psoked

Comments

It appears you're interested in specifications for the KTM 1290 Super Adventure R. This Allround model is powered by a 75° V arrangement V2, four-stroke engine with 1301.00 ccm (79.39 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 160.00 HP (116.8 kW) horsepower and 140.00 Nm (14.3 kgf-m or 103.3 ft.lbs) torque. According to our records engine heat of the KTM 1290 Super Adventure R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 150/70-18 . The entire package is supported by the frame, Chromium-Molybdenum steel trellis frame, powder coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Two-piston calipers. rear brakes. The KTM 1290 Super Adventure R was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Small windscreen. Ride-by-wire system. Switchable Bosch ABS, cornering ABS and offroad mode, disengageable.
