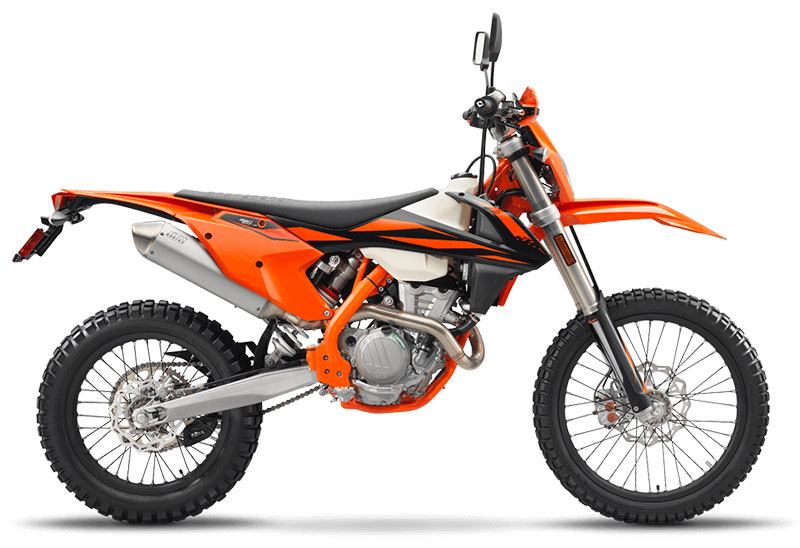

These are the known mechanical and performance specifications for your 2019 KTM 350 EXC-F.
Basic Specs
Engine
Displacement349.70 ccm (21.34 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM12800
Compression
Bore/Stroke88.0 x 57.5 mm (3.5 x 2.3 inches)
Valves/Cylinder
FuelingInjection
IgnitionKeihin EMS
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Driveline5/8 x 1/4
Fuel Economy & Polution
Fuel Consumption3.77 litres/100 km (26.5 km/l or 62.39 mpg)
Fuel Capacity8.50 litres (2.25 gallons)
Emissions87.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeChrome-molybdenum steel central-tube frame
Rake26.5°
Trail
Front SuspensionWP USD Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel310 mm (12.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance355 mm (14.0 inches)
Wheelbase1,482 mm (58.3 inches)
Dry Weight104.0 kg (229.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brake calipers on floating bearings
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brake calipers on floating bearings
Rear Brake Diameter220 mm (8.7 inches)
Wheels
