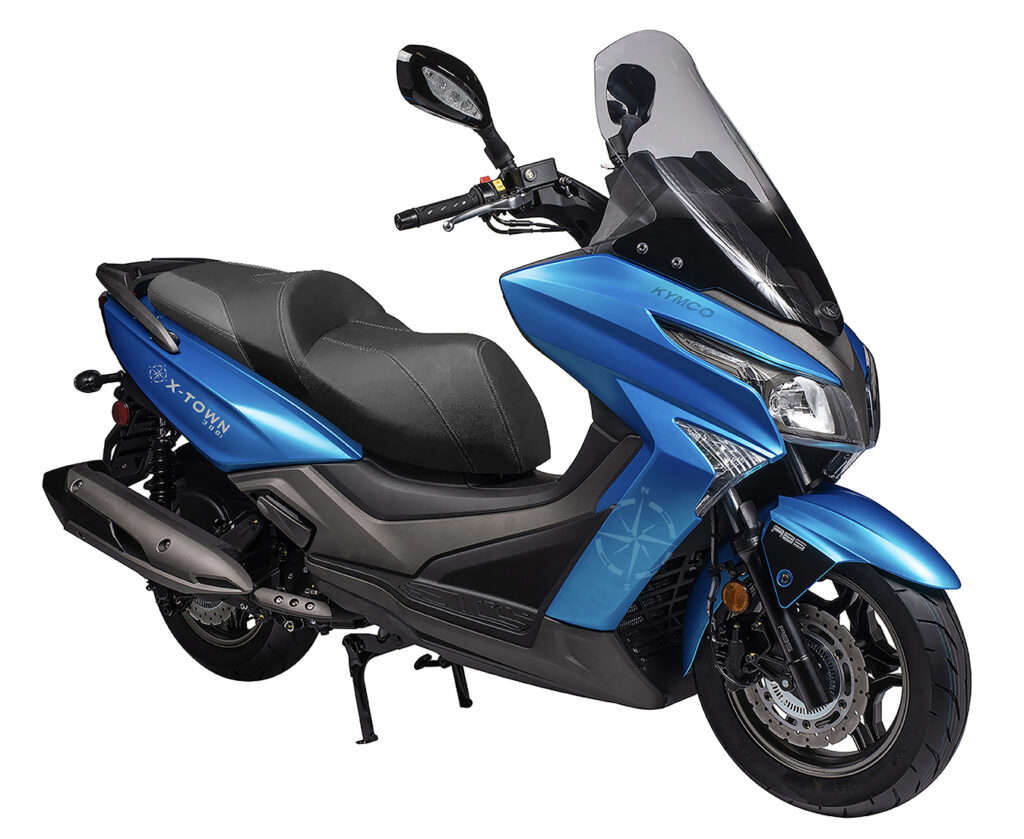

2019 Kymco X-Town 300i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Kymco X-Town 300i.

Basic Specs

Year2019
MakeKymco
ModelKymco X-Town 300i
Cost

Engine

Displacement275.60 ccm (16.82 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke72.7 x 66.4 mm (2.9 x 2.6 inches)
Valves/Cylinder
FuelingInjection. EFI
IgnitionElectric
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
DrivelineCVT

Performance

Horespower23.00 HP (16.8 kW)
Torque22.51 Nm (2.3 kgf-m or 16.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.49 litres (3.30 gallons)
Emissions

Chassis

Frame TypeSteel
Rake28.0°
Trail110 mm (4.3 inches)
Front SuspensionTelescopic Fork
Front Travel110 mm (4.3 inches)
Rear SuspensionTwin Shocks with 5-Step Preload Adjustment
Rear Travel99 mm (3.9 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,369 mm (53.9 inches)
Total Length2,256 mm (88.8 inches)
Total Width780 mm (30.7 inches)
Ground Clearance
Wheelbase1,544 mm (60.8 inches)
Dry Weight180.6 kg (398.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/80-14
Rear Tire/Tyre150/70-13
Front BrakesSingle disc. ABS
Front Brake Diameter
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kymco X-Town 300i. This Scooter model is powered by a Single cylinder, four-stroke engine with 275.60 ccm (16.82 cubic inches) of actual displacement before compression. Fueling is metered via Injection. EFI allowing this machine to produce its 23.00 HP (16.8 kW) horsepower and 22.51 Nm (2.3 kgf-m or 16.6 ft.lbs) torque. According to our records engine heat of the Kymco X-Town 300i is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/80-14 and the rear is 150/70-13 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS front brakes and Single disc. Two-piston calipers. rear brakes. The Kymco X-Town 300i was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windscreen. 12 Volt Accessory Outlet.
