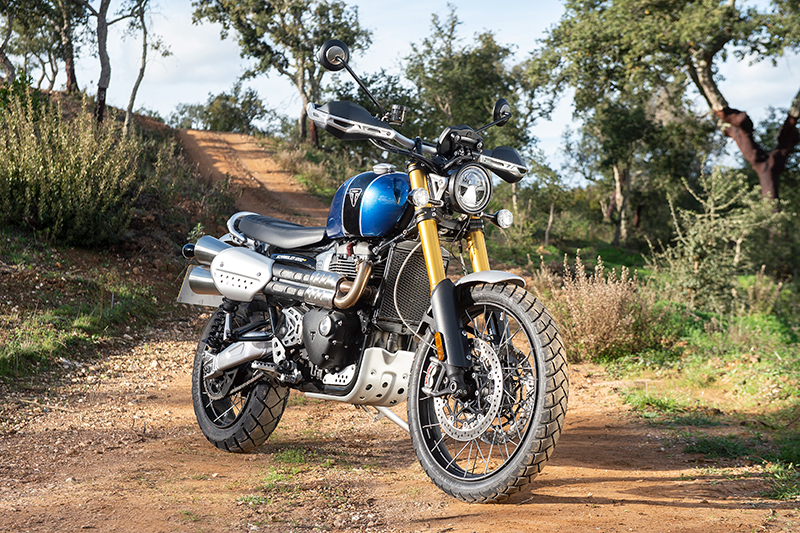

2019 Triumph Scrambler 1200XE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Triumph Scrambler 1200XE.

Basic Specs

Year2019
MakeTriumph
ModelTriumph Scrambler 1200XE
Cost

Engine

Displacement1200.00 ccm (73.22 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke97.6 x 80.0 mm (3.8 x 3.1 inches)
Valves/Cylinder
FuelingInjection. Multipoint sequential electronic fuel injection with SAI
IgnitionDigital-inductive type via engine management system
ExhaustHigh level stainless steel headers with twin chromed silencers
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet. multi-plate
DrivelineX ring chain

Performance

Horespower89.00 HP (65.0 kW)
Torque81.00 Nm (8.3 kgf-m or 59.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.11 litres/100 km (19.6 km/l or 46.03 mpg)
Fuel Capacity16.00 litres (4.23 gallons)
Emissions118.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel cradle
Rake25.8°
Trail121 mm (4.8 inches)
Front SuspensionShowa 45mm fully adjustable upside down forksl
Front Travel200 mm (7.9 inches)
Rear SuspensionFully adjustable Ohlins twin shocks with piggy back reservoir
Rear Travel200 mm (7.9 inches)
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,200 mm (47.2 inches)
Total Length
Total Width
Ground Clearance
Wheelbase1,530 mm (60.2 inches)
Dry Weight205.0 kg (452.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre150/50-17
Front BrakesDouble disc. Brembo 2-piston floating caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Brembo 2-piston floating caliper ABS
Rear Brake Diameter255 mm (10.0 inches)
WheelsSpoked wheels

Comments

It appears you're interested in specifications for the Triumph Scrambler 1200XE. This Classic model is powered by a Twin, four-stroke engine with 1200.00 ccm (73.22 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection with SAI allowing this machine to produce its 89.00 HP (65.0 kW) horsepower and 81.00 Nm (8.3 kgf-m or 59.7 ft.lbs) torque. According to our records engine heat of the Triumph Scrambler 1200XE is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 150/50-17 . The entire package is supported by the frame, Tubular steel cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo 2-piston floating caliper front brakes and Single disc. Brembo 2-piston floating caliper ABS rear brakes. The Triumph Scrambler 1200XE was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
