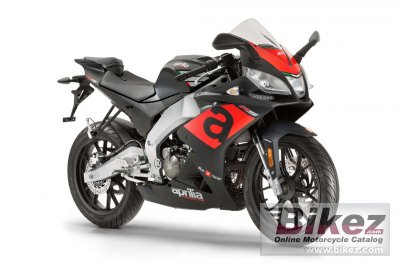

2020 Aprilia RS 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Aprilia RS 125.

Basic Specs

Year2020
MakeAprilia
ModelAprilia RS 125
TypeSport
Cost

Engine

Displacement124.2 ccm (7.58 cubic inches)
TypeRead valve intake.
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke58.0 x 47.0 mm (2.3 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Magneti Marelli M3G ø 32mm ECU
IgnitionElectronic with CDI capacity discharge
Exhaust
LubricationSeparate mixing with variable displacement, volumetric pump.
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate in oil bath.
DrivelinePrimary drive: Gearbox: 63/19 (3.31). Final drive: Chain: 17/40 (2.35).

Performance

Horespower28.2 HP (20.6 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.50 litres (3.83 US gallons)
Emissions

Chassis

Frame TypeSloping twin-spar frame in thin wall box section cast aluminium, with reinforcement cross-ribbing.
Rake
Trail
Front SuspensionUpside down hydraulic fork, 41 mm.
Front Travel110 mm (4.3 inches)
Rear SuspensionSwingarm. Hydraulic monoshock with adjustable spring preload.
Rear Travel120 mm (4.7 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1135 mm (44.7 inches)
Total Length1968 mm (77.5 inches)
Total Width760 mm (29.9 inches)
Ground Clearance
Wheelbase1353 mm (53.3 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-R17
Rear Tire/Tyre130/70-R17
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter218 mm (8.6 inches)
WheelsAluminium alloy rims

Comments

It appears you're interested in specifications for the Aprilia RS 125. This Sport model is powered by a Read valve intake. Single cylinder, four-stroke engine with 124.2 ccm (7.58 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor. Magneti Marelli M3G ø 32mm ECU allowing this machine to produce its 28.2 HP (20.6 kW) horsepower and torque. According to our records engine heat of the Aprilia RS 125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/80-R17 and the rear is 130/70-R17 . The entire package is supported by the frame, Sloping twin-spar frame in thin wall box section cast aluminium, with reinforcement cross-ribbing.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Aprilia RS 125 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
