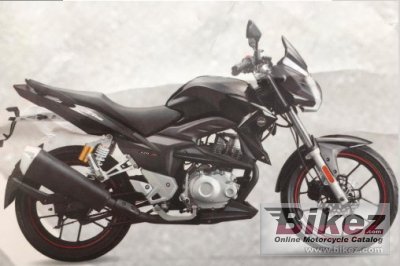

These are the known mechanical and performance specifications for your 2020 Apsonic Z-One 170.
Basic Specs
Engine
Displacement175.0 ccm (10.68 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke62.0 x 58.0 mm (2.4 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. PZ27
IgnitionCDI
Exhaust
LubricationPressure splash
CoolingAir
Performance
Horespower12.2 HP (8.9 kW) @ 8500 RPM
Torque11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7000 RPM
Top Speed90.0 km/h (55.9 mph)
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionDual shocks
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1340 mm (52.8 inches)
Dry Weight
Wet Weight150.0 kg (330.7 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-17
Rear Tire/Tyre110/80-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsWirespoked
Comments
Sold in Africa.
