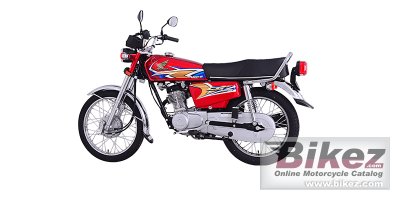

These are the known mechanical and performance specifications for your 2020 Atlas Honda CG 125.
Basic Specs
Engine
Displacement124.1 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.20 litres (2.43 US gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic Forke 103 mm Travel
Front Travel
Rear SuspensionSwing Arm 68 mm Travel
Rear Travel
Seat
Seat Height771 mm (30.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1016 mm (40.0 inches)
Total Length1911 mm (75.2 inches)
Total Width732 mm (28.8 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase
Dry Weight99.0 kg (218.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-18
Rear Tire/Tyre44637
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Sold in Pakistan.
