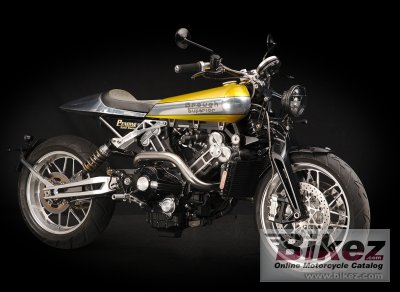

These are the known mechanical and performance specifications for your 2020 Brough Superior Pendine Sand Racer.
Basic Specs
Engine
Displacement997.0 ccm (60.84 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke94.0 x 71.8 mm (3.7 x 2.8 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic fuel injection with Synerject ECU and 2 x 50 mm Synerject throttle bodies, each with a single injector
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchMultiplate oil-bath Adler clutch with hydraulic operation
Driveline
Performance
Horespower102.0 HP (74.5 kW) @ 9600 RPM
Torque87.0 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 7300 RPM
Top Speed
Chassis
Frame TypeMachined titanium frame with fabricated titanium subframe
Rake24.8 deg
Trail108 mm (4.3 inches)
Front SuspensionFior-type cast aluminium wishbone fork with twin articulated titanium triangular links, and monoshock adjustable for preload and rebound damping with 120mm travel
Front Travel
Rear SuspensionCast aluminium swingarm pivoting in engine crankcases, with monoshock adjustable for preload and rebound damping and progressive rate link with 130mm travel
Rear Travel
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1290 mm (50.8 inches)
Total Length2234 mm (88.0 inches)
Total Width946 mm (37.2 inches)
Ground Clearance
Wheelbase1540 mm (60.6 inches)
Dry Weight186.0 kg (410.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-R19
Rear Tire/Tyre170/60-R17
Front BrakesDouble disc. Four-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Two-piston calipers.
Rear Brake Diameter230 mm (9.1 inches)
WheelsAaluminum
