Dafra

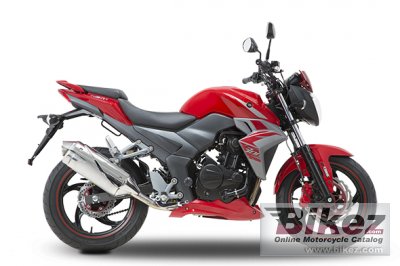

2020 Dafra Next 300 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Dafra Next 300.

Basic Specs

Dafra Next 300
Year2020
MakeDafra
ModelDafra Next 300
TypeSport
Cost
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement278.0 ccm (16.96 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke71.0 x 63.0 mm (2.8 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. EFI
IgnitionCDI
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline
Clutch Plates

Performance

Horespower27.0 HP (19.7 kW) @ 7900 RPM
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 US gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame TypeDiamond
Rake
Trail
Front SuspensionTelescopic fork
Front Travel125 mm (4.9 inches)
Rear SuspensionSingle shock
Rear Travel110 mm (4.3 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1050 mm (41.3 inches)
Total Length2005 mm (78.9 inches)
Total Width790 mm (31.1 inches)
Ground Clearance170 mm (6.7 inches)
Wheelbase1335 mm (52.6 inches)
Dry Weight165.0 kg (363.8 pounds)
Wet Weight
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre130/70-17
Front BrakesDouble disc. ABS
Front Brake Diameter287 mm (11.3 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Dafra Next 300. This Sport model is powered by a Single cylinder, four-stroke engine with 278.0 ccm (16.96 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 27.0 HP (19.7 kW) @ 7900 RPM horsepower and torque. According to our records engine heat of the Dafra Next 300 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 130/70-17 . The entire package is supported by the frame, Diamond. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc rear brakes. The Dafra Next 300 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Dafra is a Brazilian brand.
