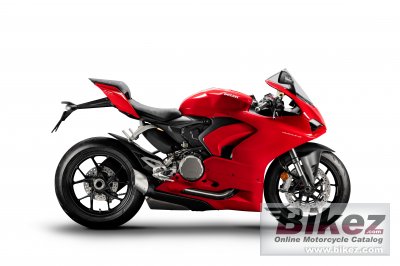

2020 Ducati Panigale V2 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Ducati Panigale V2.

Basic Specs

Ducati Panigale V2
Year2020
MakeDucati
ModelDucati Panigale V2
TypeSport
Cost

Engine

Displacement955.0 ccm (58.27 cubic inches)
TypeSuperquadro L-Twin
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke100.0 x 60.8 mm (3.9 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Ignition
Exhaust2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchOil bathed
DrivelineChain 525; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.77.

Performance

Horespower155.0 HP (113.1 kW) @ 10750 RPM
Torque104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 9000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMonocoque Aluminium
Rake24.0 deg
Trail95 mm (3.7 inches)
Front Suspension43 mm Showa BPF fork
Front Travel120 mm (4.7 inches)
Rear SuspensionFully adjustable Sachs unit. Remote spring preload adjustment. Aluminium single-sided swingarm
Rear Travel130 mm (5.1 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1105 mm (43.5 inches)
Total Length2070 mm (81.5 inches)
Total Width745 mm (29.3 inches)
Ground Clearance
Wheelbase1436 mm (56.5 inches)
Dry Weight176.0 kg (388.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/60-ZR17
Front BrakesDouble disc. ABS. Brembo.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Brembo.
Rear Brake Diameter245 mm (9.6 inches)
Wheels3 spoke W shape forged light alloy. Pirelli Diablo Rosso Corsa II tires.

Comments

It appears you're interested in specifications for the Ducati Panigale V2. This Sport model is powered by a Superquadro L-Twin V2, four-stroke engine with 955.0 ccm (58.27 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. allowing this machine to produce its 155.0 HP (113.1 kW) @ 10750 RPM horsepower and 104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 9000 RPM torque. According to our records engine heat of the Ducati Panigale V2 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/60-ZR17 . The entire package is supported by the frame, Monocoque Aluminium. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Brembo. front brakes and Single disc. ABS. Brembo. rear brakes. The Ducati Panigale V2 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Traction control. Three Riding Modes (Race, Sport, Street).
