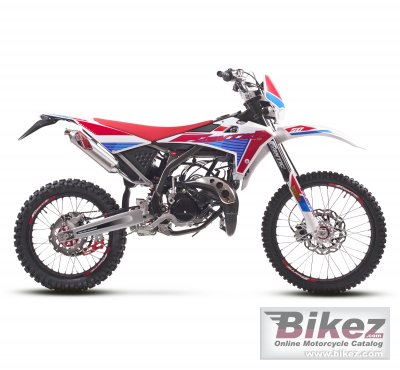

These are the known mechanical and performance specifications for your 2020 Fantic 50E Performance.
Basic Specs
Engine
Displacement48.9 ccm (2.98 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. DellOrtoø16
IgnitionElectronic, variable
ExhaustAnodized aluminium silencer by BigOne
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 US gallons)
Emissions
Chassis
Frame TypePerimeter steel CrMo. Subframe: Removable in steel. Swing arm: Steel, progressive link.
Rake
Trail
Front SuspensionFANTIC ø41mm USD
Front Travel
Rear SuspensionFantic FRS 50 single shock
Rear Travel
Seat
Seat Height905 mm (35.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2100 mm (82.7 inches)
Total Width
Ground Clearance
Wheelbase1420 mm (55.9 inches)
Dry Weight84.0 kg (185.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre110/80-18
Front BrakesSingle disc. Wave disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Wave disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsAluminium, anodized black, wire spoked
Comments
Italian brand. Bike also called Fantic 50 Enduro Performance.
