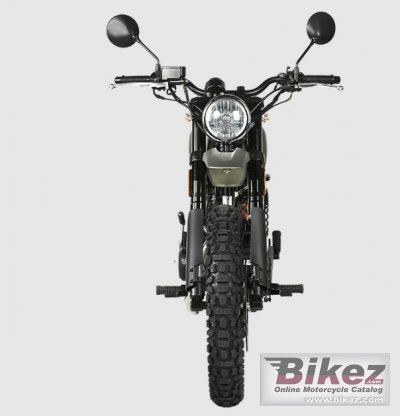

2020 Hanway Scrambler 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Hanway Scrambler 125.

Basic Specs

Hanway Scrambler 125
Year2020
MakeHanway
ModelHanway Scrambler 125
Cost

Engine

Displacement124.6 ccm (7.60 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke
Valves/Cylinder2
FuelingInjection
IgnitionElectronic inductive
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox
Final Drive
Clutch
Driveline

Performance

Horespower10.6 HP (7.7 kW) @ 8000 RPM
Torque10.4 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 US gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionUSD telescopic forks
Front Travel
Rear SuspensionTwin coil spring, oil damped
Rear Travel
SeatTwo person seat
Seat Height730 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1060 mm (41.7 inches)
Total Length2050 mm (80.7 inches)
Total Width880 mm (34.6 inches)
Ground Clearance180 mm (7.1 inches)
Wheelbase1320 mm (52.0 inches)
Dry Weight112.0 kg (246.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-18
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Hanway Scrambler 125. This Allround model is powered by a Single cylinder, four-stroke engine with 124.6 ccm (7.60 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection allowing this machine to produce its 10.6 HP (7.7 kW) @ 8000 RPM horsepower and 10.4 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Hanway Scrambler 125 is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-18 and the rear is 130/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Hanway Scrambler 125 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Chinese made bike.
