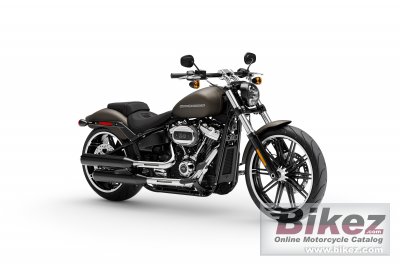

These are the known mechanical and performance specifications for your 2020 Harley-Davidson Breakout 114.
Basic Specs
Year2020
MakeHarley-Davidson
ModelHarley-Davidson Breakout 114
TypeCustom / cruiser
CostUS$ 20499. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1868.0 ccm (113.99 cubic inches)
TypeMilwaukee-Eight 114 engine
DetailsV2, four-stroke
Max RPM
Compression15.0:1
Bore/Stroke102.0 x 114.0 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-into-2 staggered; catalyst in muffler
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower100.0 HP (73.0 kW) @ 5020 RPM
Torque161.4 Nm (16.5 kgf-m or 119.0 ft.lbs) @ 3000 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity13.20 litres (3.49 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake34.0 deg
Trail145 mm (5.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height665 mm (26.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2370 mm (93.3 inches)
Total Width
Ground Clearance115 mm (4.5 inches)
Wheelbase1695 mm (66.7 inches)
Dry Weight294.0 kg (648.2 pounds)
Wet Weight305.0 kg (672.4 pounds)
Wheels & Brakes
Front Tire/Tyre130/60-B21
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston floating
Rear Brake Diameter
WheelsGloss black, Gasser II cast aluminum
