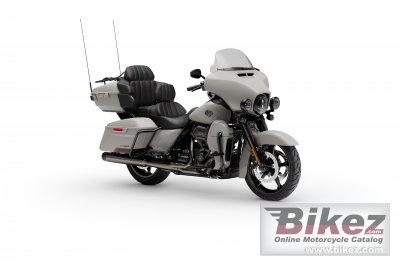

These are the known mechanical and performance specifications for your 2020 Harley-Davidson CVO Limited.
Basic Specs
Year2020
MakeHarley-Davidson
ModelHarley-Davidson CVO Limited
TypeTouring
CostUS$ 44039. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1923.0 ccm (117.34 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 117
DetailsV2, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke103.5 x 114.3 mm (4.1 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustDual, with crossover
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower105.0 HP (76.6 kW) @ 5250 RPM
Torque169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) @ 3500 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.74 litres/100 km (17.4 km/l or 40.98 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions133.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0 deg
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height704 mm (27.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2600 mm (102.4 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1625 mm (64.0 inches)
Dry Weight411.0 kg (906.0 pounds)
Wet Weight428.2 kg (944.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. ABS, 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS, 4-piston
Rear Brake Diameter
WheelsGloss Black and Contrast Satin Tomahawk
Comments
Cruise control. Alarm. Infotainment.
