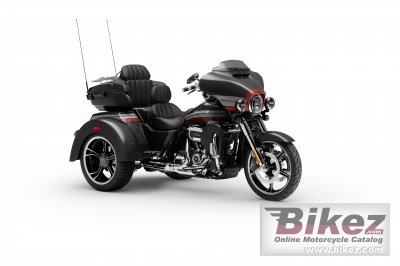

2020 Harley-Davidson CVO Tri Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Harley-Davidson CVO Tri Glide.

Basic Specs

Harley-Davidson CVO Tri Glide
Year2020
MakeHarley-Davidson
ModelHarley-Davidson CVO Tri Glide
CostUS$ 48999. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement1917.4 ccm (117.00 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 117 engine
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.3 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 dual exhaust with slash cut mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive

Performance

Horespower105.0 HP (76.6 kW) @ 5000 RPM
Torque169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) @ 3750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.88 litres/100 km (17.0 km/l or 40.00 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions136.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0 deg
Trail100 mm (3.9 inches)
Front SuspensionTelescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height658 mm (25.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2670 mm (105.1 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1670 mm (65.7 inches)
Dry Weight562.0 kg (1,239.0 pounds)
Wet Weight575.6 kg (1,269.0 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-B19
Rear Tire/Tyre215/45-R18
Front BrakesDouble disc. 4 piston. ABS.
Front Brake Diameter
Rear BrakesSingle disc. ABS.
Rear Brake Diameter
WheelsGloss Black and Contrast Clear Tomahawk. Two rear wheels.

Comments

It appears you're interested in specifications for the Harley-Davidson CVO Tri Glide. This Touring model is powered by a Twin-Cooled™ Milwaukee-Eight® 117 engine V2, four-stroke engine with 1917.4 ccm (117.00 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its 105.0 HP (76.6 kW) @ 5000 RPM horsepower and 169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) @ 3750 RPM torque. According to our records engine heat of the Harley-Davidson CVO Tri Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/60-B19 and the rear is 215/45-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4 piston. ABS. front brakes and Single disc. ABS. rear brakes. The Harley-Davidson CVO Tri Glide was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Trike. Windshield. Cruise control. Alarm. Foot actuated dual parking brake.
