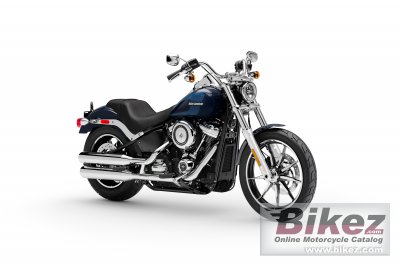

These are the known mechanical and performance specifications for your 2020 Harley-Davidson Low Rider.
Basic Specs
Year2020
MakeHarley-Davidson
ModelHarley-Davidson Low Rider
TypeCustom / cruiser
CostUS$ 14899. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1746.0 ccm (106.54 cubic inches)
TypeMilwaukee-Eight® 107 engine
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 111.0 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-into-2 offset shotgun; catalyst in muffler
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain 34/46 ratio primary drive
Performance
Horespower86.0 HP (62.8 kW) @ 5020 RPM
Torque149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) @ 3000 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity18.90 litres (4.99 US gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.0 deg
Trail163 mm (6.4 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2355 mm (92.7 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1630 mm (64.2 inches)
Dry Weight287.0 kg (632.7 pounds)
Wet Weight300.0 kg (661.4 pounds)
Wheels & Brakes
Front Tire/Tyre110/90-B19
Rear Tire/Tyre180/70-B16
Front BrakesSingle disc. Optional ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. Optional ABS. 2-piston
Rear Brake Diameter
Wheels
Comments
